600 Copper screening machine 130m 550mm stepless adjustable pitch

Application:

Suitable for large cross-section cables, copper and aluminum tape concentric wrapping. Applying a layer of copper tape onto the insulated conductor, the copper screening machine significantly reduces the electromagnetic interference from external sources, thereby improving signal/electrical transmission integrity.

Main specifications:

① The equipment is designed with a maximum speed of 1000r /min and an 18.5KW AC variable frequency motor.

② Tape tension : servo tension

③ Maximum diameter of wrapped cable core Φ130㎜

④ Tape reel outer diameter Φ550mm

⑤ Tape width 10～60㎜

⑥ Wrapping pitch: stepless adjustment

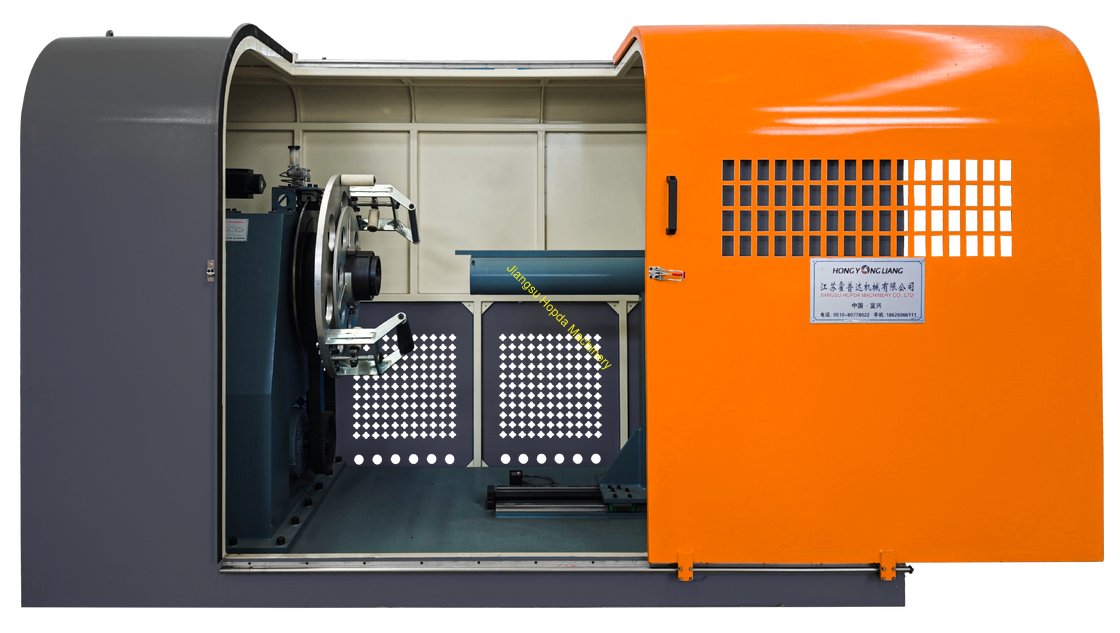

Product image:
