1600 Portal / Gantry Type Take Up Pay Off 800 - 1600 Bobbin Reel Size
  • 1600 Portal / Gantry Type Take Up Pay Off 800 - 1600 Bobbin Reel Size
  • 1600 Portal / Gantry Type Take Up Pay Off 800 - 1600 Bobbin Reel Size

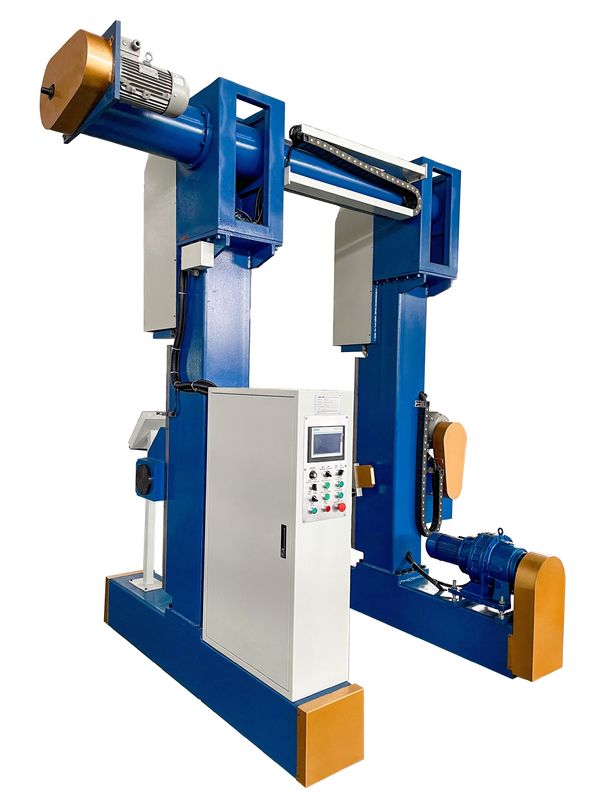

1600 Portal / Gantry Type Take Up Pay Off 800 - 1600 Bobbin Reel Size

1600 Portal / Gantry Type Take Up Pay Off 800 - 1600 Bobbin Reel Size

Brand Name Jiangsu Hopda Machinery
Model Number 1600
Product Details
Applicable Reel:
φ1000-φ1600mm
Reel Width (outer):
750-1180mm (inner:630-1600)
Winding Speed:
2.8-150m
Three-phase Moter:
960rpm
Servo Moter:
0.75Kw
Max. Load:
6T
Length * Width * Height:
2500*2230*2100
Highlight:

Gantry Type Take Up Pay Off

,

1600 Portal Take Up Pay Off

,

Take Up Pay Off

Payment & Shipping Terms
Minimum Order Quantity
1
Delivery Time
60-90days
Payment Terms
L/C, T/T
Product Description

Application:

This Portal type take-up and pay-off machines are mainly used for taking up and paying off stranded wire and cable to large size drums. Portal pay-offs and take-ups are suitable in various cable manufacture processes such as wire stranding, cable laying-up, wire lapping and taping, cable extruding and sheathing, wire armouring and screening, unwinding and rewinding, as well as CCV line and VCV line.



Technical specification:

Model Φ1250 Φ1600 Φ2000 Φ2500 Φ3150
Cable diameter: φ3~φ30 φ5~φ40 φ7~φ70 φ10~φ100 φ20~φ130
Drum diameter: 630~1250mm 630~1600mm 800~2000mm 1250~2500mm 1600~3150mm
Drum width: 475-950mm 475-1180mm 600-1500mm 950-1900mm 1180-2300mm
Load capacity: 3 T 4/8 T 6/10 T 10/20 T 15/20 T



1600 Portal / Gantry Type Take Up Pay Off 800 - 1600 Bobbin Reel Size 0





1600 Portal / Gantry Type Take Up Pay Off 800 - 1600 Bobbin Reel Size 1
