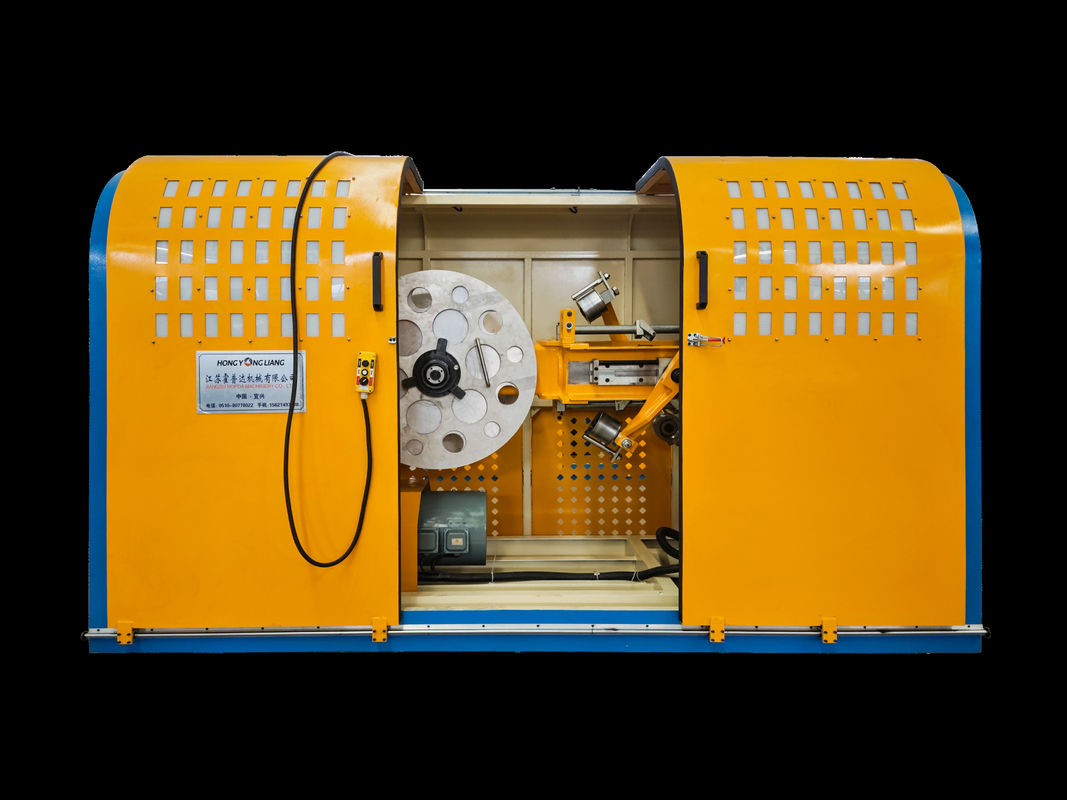

800 Steel tape cable armouring machine for inlet wire Φ140mm

Armouring Cum Core Laying Machine , Cable Strander Sub Twist Body

Specification:

Application:

For wrapping the metal layer in a helical pattern around the cable to enhance the mechanical strength and durability of the cable.

Product Description

An is a specialized piece of equipment used in the wire and cable industry for the production of armored cables. It combines the functions of armor wire stranding and core wire laying in a single machine.

The armor wire stranding process involves twisting multiple wires together to form a protective layer, commonly known as armor, around the core of the cable. The armor provides mechanical strength and protection to the cable, making it suitable for rugged environments or applications where additional durability is required.

The core wire laying process involves laying the core wires, which carry the electrical signals or power, within the armored layer. The machine is designed to accurately position and lay the core wires alongside the armor wires to create a composite cable structure.

Key features and capabilities of an Armouring Cum Core Laying Machine may include:

1. Wire Stranding: The machine is equipped with stranding heads or bobbins to hold the armor wires. These wires are twisted together in a specific pattern or configuration to form the armored layer.

2. Core Wire Laying: The machine has mechanisms to position and lay the core wires alongside the armor wires. The core wires are typically placed in the gaps between the armor wires and secured in place during the laying process.

3. Tension Control: The machine provides tension control mechanisms to ensure consistent wire tension during stranding and laying operations. This helps to maintain the structural integrity and quality of the cable.

4. Speed Control: The machine offers adjustable speed control to accommodate different production requirements and types of cables.

5. PLC Control Panel: The machine is equipped with a programmable logic controller (PLC) control panel for easy operation, parameter adjustment, and monitoring of the stranding and laying processes. It allows for precise control and synchronization of the machine's functions.

800 armourning machine

630 armouring machine

710 armouring machine
