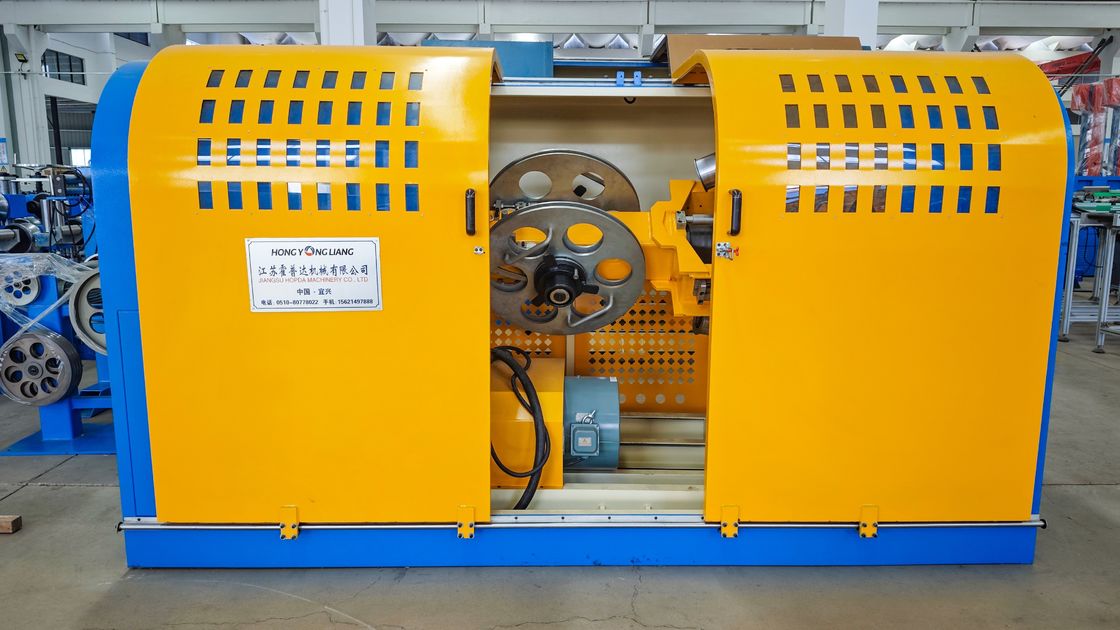

Tangential Type Non Metallic Taping Machine For Cable Wrapping Half-cut Auxiliary Cable Equipment
  • Tangential Type Non Metallic Taping Machine For Cable Wrapping Half-cut Auxiliary Cable Equipment
  • Tangential Type Non Metallic Taping Machine For Cable Wrapping Half-cut Auxiliary Cable Equipment
  • Tangential Type Non Metallic Taping Machine For Cable Wrapping Half-cut Auxiliary Cable Equipment
Tangential Type Non Metallic Taping Machine For Cable Wrapping Half-cut Auxiliary Cable Equipment

Tangential Type Non Metallic Taping Machine For Cable Wrapping Half-cut Auxiliary Cable Equipment

Brand Name Jiangsu Hopda Machinery
Model Number 630
Product Details
Wire Passing Hole Diameter:
Ф95mm
Tape Reel Width:
20－80mm
No. Of Tape Reel:
2
Wrapping Type:
Half-cut
Size Of Tape Reel:
Ф600×Ф80mm
Wrapping Tension:
Constant (adjustable)
Wrapping Pitch:
Steplessly Adjustable
Motor Power:
11kw
Head Rotation Speed:
Max. 735 Rpm
Central Height:
1000mm
Tape Material:
Copper Ribbon, Copper Tape, Buffer Tape, Water Blocking Tape,etc.
Highlight:

Auxiliary Cable Equipment taping machine

,

Tangential type taping machine

,

Cable Wrapping taping machine

Payment & Shipping Terms
Minimum Order Quantity
1
Payment Terms
T/T
Product Description

Product application:

For applying water blocking tape, buffer tape, etc. on cables and wire to give them enhanced protection, improved insulation performance, fire retardancy, and shielding interference.



Production description:
Firstly, it is applicable to wires and cables with high requirements for insulation performance, such as high-voltage wires and cables. By wrapping specific non-metallic insulation materials, their insulation performance can be significantly improved to ensure safe and stable operation in a high-voltage environment.Tangential Type Non Metallic Taping Machine For Cable Wrapping Half-cut Auxiliary Cable Equipment 0

Secondly, it is applied in wires and cables that need to have fire-retardant and flame-resistant properties, such as the cables used for internal wiring in buildings, subways or tunnels.
Tangential Type Non Metallic Taping Machine For Cable Wrapping Half-cut Auxiliary Cable Equipment 1

Furthermore, for those wires and cables that are vulnerable to electromagnetic interference, such as communication cables and control cables, the non-metallic wrapping machine can reduce external electromagnetic interference by wrapping shielding materials to ensure the accuracy and stability of signal transmission.
Tangential Type Non Metallic Taping Machine For Cable Wrapping Half-cut Auxiliary Cable Equipment 2

Additionally, for wires and cables used in some special environments, such as high-temperature-resistant cables in high-temperature environments and moisture-proof cables in high-humidity environments, the non-metallic wrapping machine can provide additional protection and performance enhancement.
