5 core cabling machine fully back-twist 1250mm payoff

Place of Origin	China
Brand Name	Hopda
Certification	ISO,CE
Model Number	1250, 1+5

Product Details

Single Wire Crosssection:

10 Sqmm To 240 Sqmm

Max. OD:

80mm

Stranding Pitch:

3500mm

Max. Rotation Speed:

100rpm

Power:

55KW

Take-up Bobbin:

PN2500

Payoff Bobbin In Cage:

PN1250

Caterpillar:

2500kg

Center Height:

1000mm

Payment & Shipping Terms

Minimum Order Quantity

1 set (stranding host can be ordered separately)

Price

negotiable

Packaging Details

Seaworthy packaging in containter for export

Delivery Time

if no stock in place, 30-60 calendar days

Payment Terms

T/T,L/C

Supply Ability

5 set per month

Product Description

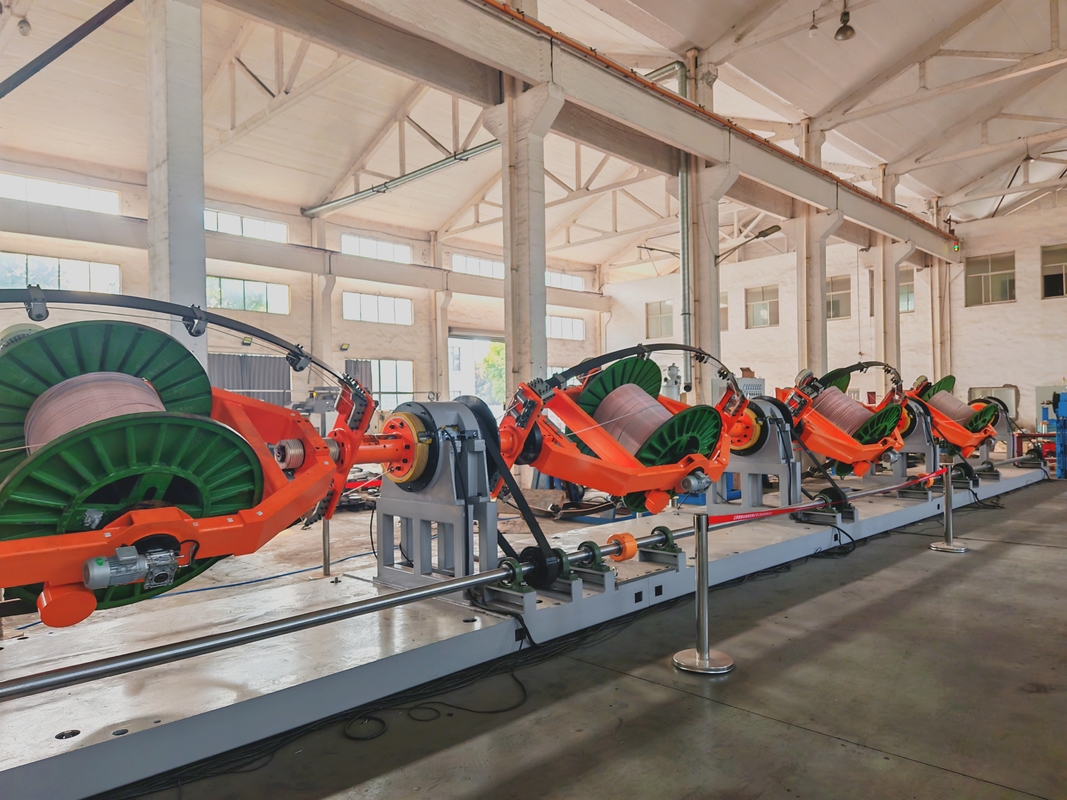

1250mm skip stranding machine for upto 7 core cabling with or without back-twist

Description and application:

The first of its kind skip stranding machine with full back-twist functionality. Compared with conventional cradle-type cabling machines, our machine offers 4 times the productivity. It is suitable for stranding a wide range of products, including soft-structure cables (such as control cables, Aluminum Conductor Steel Reinforced (ACSR) overhead cables, and power cables) as well as bare copper, aluminum, and aluminum alloy wires—supporting up to 7 cores.

The machine also features optional back-twist functionality, which can be added based on your specific requirements. In terms of drive mode, it provides two options: independent drive or ground shaft drive, allowing flexible adaptation to different production setups.

Features:

User friendly human-machine interface for effortless operation and comprehensive monitor
Adopting PLC for automatic pitch adjustment
Can be equipped with a back-twist mode with a maximum of 100%.
Independent drive or ground shaft drive
Utilisation of AC induction servo motors for reilable and energy-efficient operation

Specification:

Back-twisting Bow Type Laying up machine	5*1250	100 rpm	Maximum speed of armored cable: 30m/min Non-woven cabling speed: 40 - 60m/min
	5*1600	100 rpm	Non-woven cabling speed: 30 - 40m/min
	3*1800 (Medium Voltage)	80 rpm

Main components:

Stranding host (all payoff bobbins intergrated into the body to achieve full back-twist function)
Filer payoff stand (Optional)
Assembling die holder
Central taping machine
Armouring machine
Meter counter
Capstan/Hual-off/Caterpillar
Take up with traversing
Control system
Transmission system
Wearing parts
