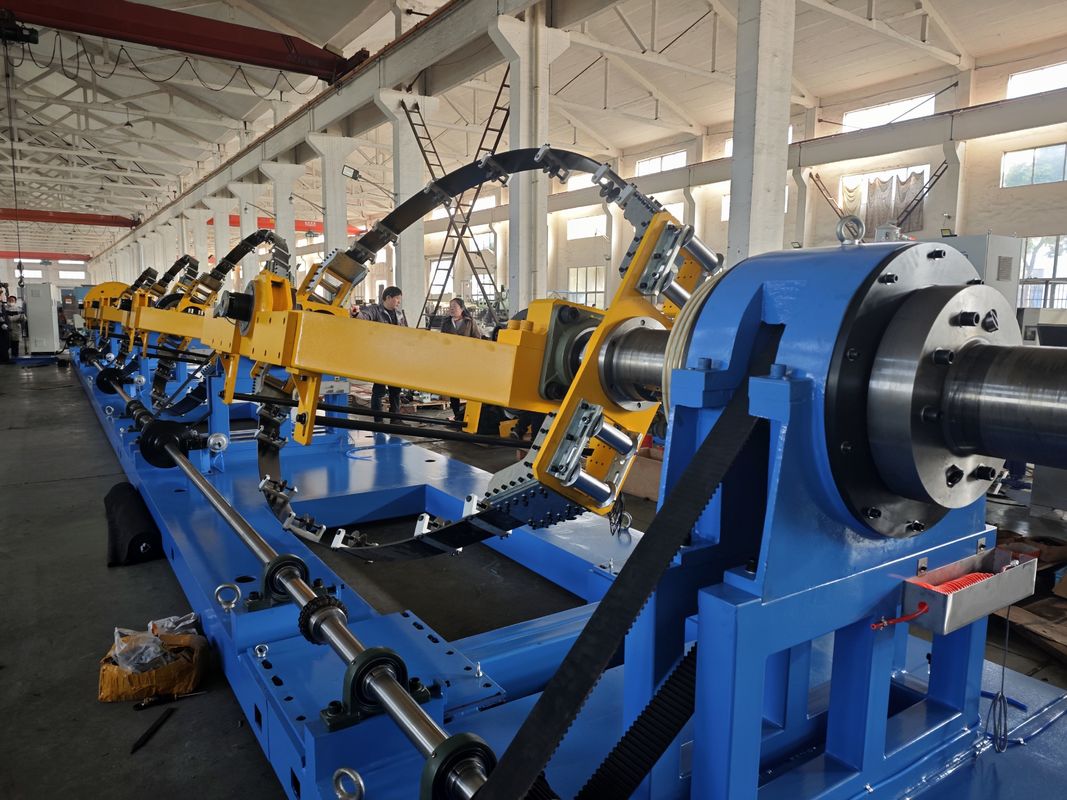

1600mm Skip stranding machine for upto 7 core cable with or without backtwist

Place of Origin	China
Brand Name	Hopda
Certification	ISO,CE
Model Number	1600, 1+5

Product Details

Single Wire Diameter (soft Conductor):

10-20mm

Single Wire Diameter (hard):

3.5-8mm

Max. OD:

70mm

Stranding Pitch:

60-1500mm

Max. Rotation Speed:

250rpm (3B)

Traction Speed:

120m/min

Power:

90KW

Take-up Bobbin:

PN2500

Payoff Bobbin In Cage:

PN1600

Caterpillar:

2000kg

Center Height:

1000mm

Length * Width:

60*7

Highlight:

1600mm Bow Type Laying Up Machine

Stranding Bow Type Laying Up Machine

Machine For Stranding Steel Wire

Payment & Shipping Terms

Minimum Order Quantity

1 set (stranding host can be ordered separately)

Price

negotiable

Packaging Details

Seaworthy packaging in containter for export

Delivery Time

if no stock in place, 30-60 calendar days

Payment Terms

T/T,L/C

Supply Ability

5 set per month

Product Description

1600mm Skip stranding machine for upto 7 core cable with or without backtwist

Description and application:

Our bow type laying up machine has a higher productivity than the traditional cradles type cabling machine and is suitable for stranding soft structure cables like control cable, ACSR overhead cable, power cable, and bare copper, aluminum, and aluminum alloy wires with a maximum of 7 cores. The back - twist function can be chosen based on your requirements. The machine can be driven independently or via a ground shaft.

Features:

User friendly human-machine interface for effortless operation and comprehensive monitor
Adopting PLC for automatic pitch adjustment
Can be equipped with a back-twist mode with a maximum of 100%.
Independent drive or ground shaft drive
Utilisation of AC induction servo motors for reilable and energy-efficient operation

Specification:

Payoff bobbin(mm)	Max. rotation speed (r/min)				Single wire diameter (mm)		Pitch (mm)	Max. OD(mm)	Power(KW)	Caterpillar(kg)	Take-up	Central height(mm)	Length * width(m)
Payoff bobbin(mm)	3B	4B	5B	6B	Soft conductor	Hard conductor	Pitch (mm)	Max. OD(mm)	Power(KW)	Caterpillar(kg)	Take-up	Central height(mm)	Length * width(m)
Ø1000	430	400	370	350	Ø8～Ø15	Ø3.0～Ø6.0	90-1400	24	37	1600	PN1600	1000	50×6
Ø1250	330	288	270	250	Ø8～Ø15	Ø3.0～Ø6.0	48-1500	60	55	2000	PN2000	1000	55×6
Ø1600	250	220	200	180	Ø10～Ø20	Ø3.5～Ø8.0	60-1500	70	90	2000	PN2500	1000	60×7
