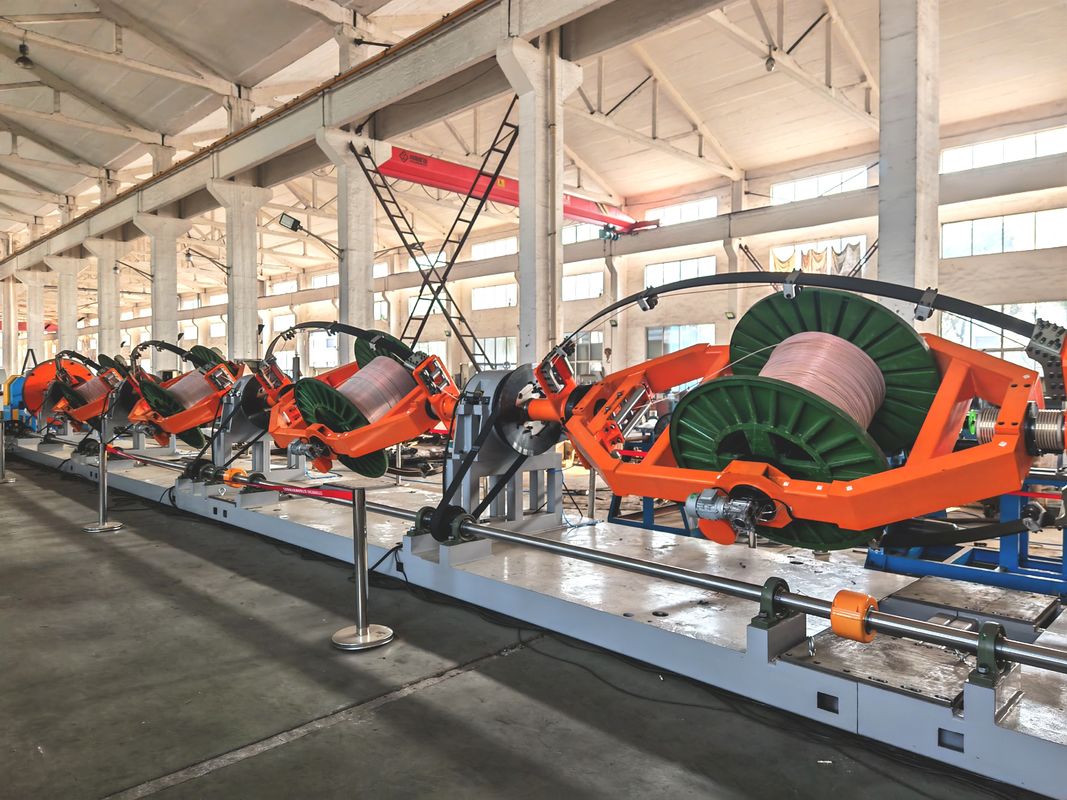

1000mm 1+4 PLC Skip Strander Machine For Phone Cable Untwist

Place of Origin	China
Brand Name	Hopda
Certification	ISO,CE
Model Number	1250, 1+5

Product Details

Single Wire Diameter (soft Conductor):

3-6mm

Single Wire Diameter (hard):

8-15mm

Max. OD:

60mm

Stranding Pitch:

48-1500mm

Max. Rotation Speed:

330rpm (3B)

Power:

55KW

Take-up Bobbin:

PN2000

Payoff Bobbin In Cage:

PN1250

Caterpillar:

2000kg

Center Height:

1000mm

Length * Width:

55m*6m

Highlight:

Phone cable PLC skip strander machine

1+4 PLC skip strander machine

1000mm PLC skip strander machine

Payment & Shipping Terms

Minimum Order Quantity

1 set (stranding host can be ordered separately)

Price

negotiable

Packaging Details

Seaworthy packaging in containter for export

Delivery Time

if no stock in place, 30-60 calendar days

Payment Terms

T/T,L/C

Supply Ability

5 set per month

Product Description

Description and application:

Our bow type laying up machine has productivity that is superior to that of the conventional cradles type cabling machine. It can be used for stranding soft structure cables like control cables, ACSR overhead cables, power cables, and bare copper, aluminum, and aluminum alloy wires with up to 7 cores. The back - twist function is available as an option based on your demand. The machine can be driven either independently or by a ground shaft.

Features:

The human - machine interface is user - friendly, facilitating easy operation and comprehensive monitoring.
PLC is employed to carry out automatic pitch adjustment.
It can be configured with a back - twist mode with a 100% maximum capacity.
It provides the choice between independent drive and ground shaft drive.
AC induction servo motors are utilized to ensure reliable and energy - efficient running.

Specification:

Payoff bobbin(mm)	Max. rotation speed (r/min)				Single wire diameter (mm)		Pitch (mm)	Max. OD(mm)	Power(KW)	Caterpillar(kg)	Take-up	Central height(mm)	Length * width(m)
Payoff bobbin(mm)	3B	4B	5B	6B	Soft conductor	Hard conductor	Pitch (mm)	Max. OD(mm)	Power(KW)	Caterpillar(kg)	Take-up	Central height(mm)	Length * width(m)
Ø1000	430	400	370	350	Ø8～Ø15	Ø3.0～Ø6.0	90-1400	45	37	1600	PN1600	1000	50×6
Ø1250	330	288	270	250	Ø8～Ø15	Ø3.0～Ø6.0	48-1500	60	55	2000	PN2000	1000	55×6
Ø1600	250	220	200	180	Ø10～Ø20	Ø3.5～Ø8.0	60-1500	70	90	2000	PN2500	1000	60×7
