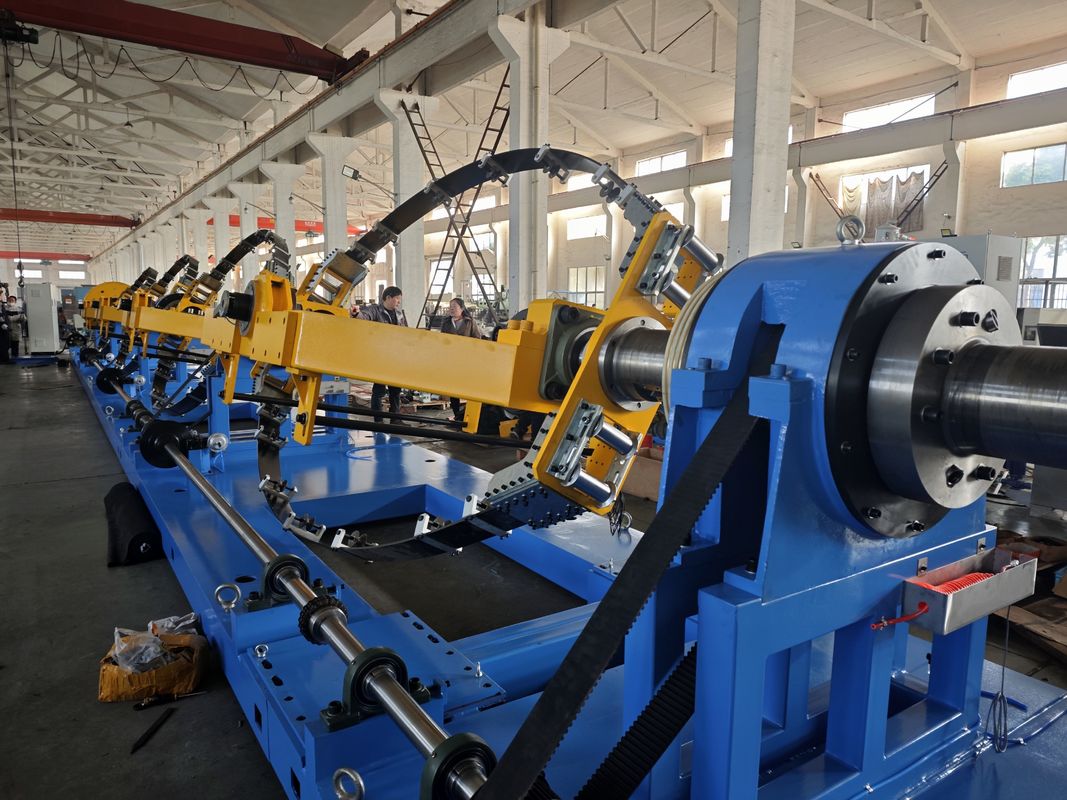

1000mm 1+3 PLC Bow Twister For Flexible Conductor Backtwist

Place of Origin	China
Brand Name	Hopda
Certification	ISO,CE
Model Number	1250, 1+5

Product Details

Single Wire Diameter (soft Conductor):

3-6mm

Single Wire Diameter (hard):

8-15mm

Max. OD:

60mm

Stranding Pitch:

48-1500mm

Max. Rotation Speed:

330rpm (3B)

Power:

55KW

Take-up Bobbin:

PN2000

Payoff Bobbin In Cage:

PN1250

Caterpillar:

2000kg

Center Height:

1000mm

Length * Width:

55m*6m

Highlight:

Flexible Conductor bow twister

1000mm bow twister

1+3 PLC bow twister

Payment & Shipping Terms

Minimum Order Quantity

1 set (stranding host can be ordered separately)

Price

negotiable

Packaging Details

Seaworthy packaging in containter for export

Delivery Time

if no stock in place, 30-60 calendar days

Payment Terms

T/T,L/C

Supply Ability

5 set per month

Product Description

Description and application:

Our bow type laying up machine demonstrates greater productivity than the traditional cradles type cabling machine. It is applicable to the stranding of soft structure cables including control cables, ACSR overhead cables, power cables, and bare copper, aluminum, and aluminum alloy wires with up to 7 cores. The back - twist function can be selected optionally based on your needs. The drive of the machine can be either independent or through a ground shaft.

Features:

The human - machine interface, being user - friendly, enables effortless operation and all - round monitoring.
PLC is adopted for the implementation of automatic pitch adjustment.
It can be equipped with a back - twist mode with a maximum value of 100%.
It offers two drive options: independent drive and ground shaft drive.
AC induction servo motors are used to guarantee reliable and energy - efficient operation.

Specification:

Payoff bobbin(mm)	Max. rotation speed (r/min)				Single wire diameter (mm)		Pitch (mm)	Max. OD(mm)	Power(KW)	Caterpillar(kg)	Take-up	Central height(mm)	Length * width(m)
Payoff bobbin(mm)	3B	4B	5B	6B	Soft conductor	Hard conductor	Pitch (mm)	Max. OD(mm)	Power(KW)	Caterpillar(kg)	Take-up	Central height(mm)	Length * width(m)
Ø1000	430	400	370	350	Ø8～Ø15	Ø3.0～Ø6.0	90-1400	45	37	1600	PN1600	1000	50×6
Ø1250	330	288	270	250	Ø8～Ø15	Ø3.0～Ø6.0	48-1500	60	55	2000	PN2000	1000	55×6
Ø1600	250	220	200	180	Ø10～Ø20	Ø3.5～Ø8.0	60-1500	70	90	2000	PN2500	1000	60×7
