630mm 1+4 Mechanical Different Linkage Cabling Machine For Electric Cable Backtwist

Place of Origin	China
Brand Name	Hopda
Certification	ISO,CE
Model Number	1250, 1+5

Product Details

Single Wire Diameter (soft Conductor):

3-6mm

Single Wire Diameter (hard):

8-15mm

Max. OD:

60mm

Stranding Pitch:

48-1500mm

Max. Rotation Speed:

330rpm (3B)

Power:

55KW

Take-up Bobbin:

PN2000

Payoff Bobbin In Cage:

PN1250

Caterpillar:

2000kg

Center Height:

1000mm

Length * Width:

55m*6m

Highlight:

1+4 Mechanical different linkage cabling machine

630mm Mechanical different linkage cabling machine

Electric Cable Backtwist Cabling Machine

Payment & Shipping Terms

Minimum Order Quantity

1 set (stranding host can be ordered separately)

Price

negotiable

Packaging Details

Seaworthy packaging in containter for export

Delivery Time

if no stock in place, 30-60 calendar days

Payment Terms

T/T,L/C

Supply Ability

5 set per month

Product Description

Description and application:

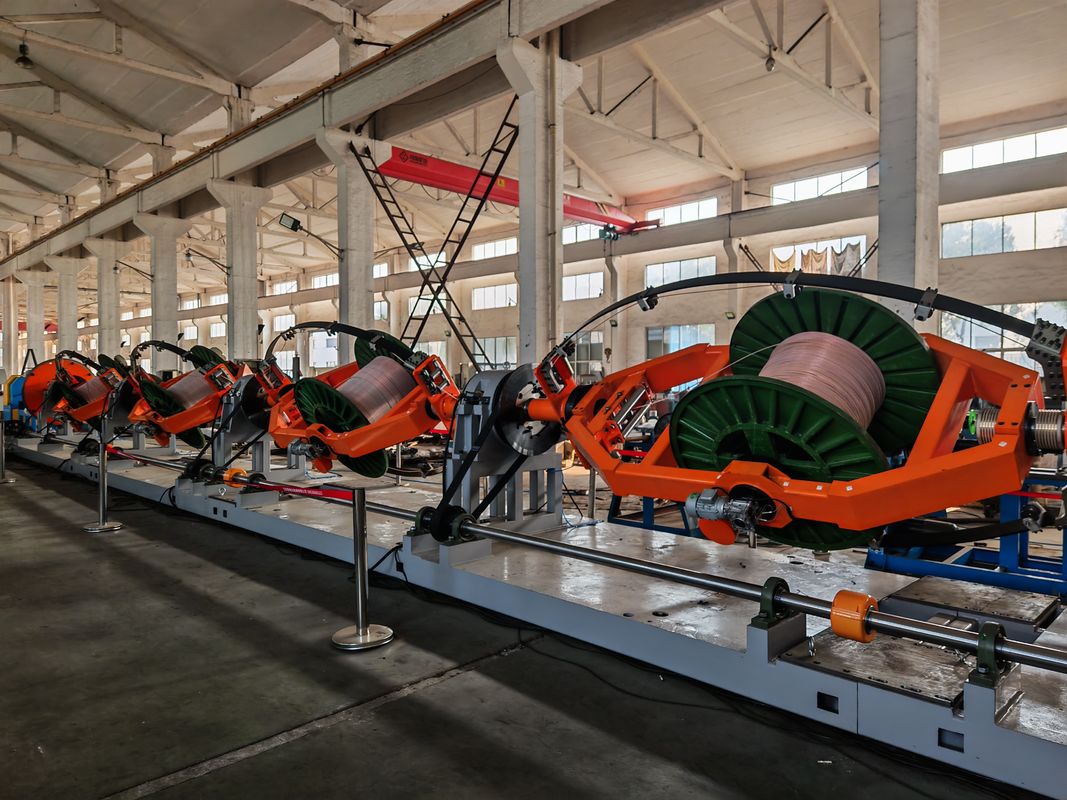

With productivity far exceeding that of the conventional cradles type cabling machine, our bow type laying up machine is suitable for stranding soft structure cables such as control cables, ACSR overhead cables, power cables, along with bare copper, aluminum, and aluminum alloy wires having up to 7 cores. You can opt for the back - twist function according to your requirements. The machine's drive can be either independent or ground shaft - driven.

Features:

The user - friendly human - machine interface makes operation easy and monitoring comprehensive.

Automatic pitch adjustment is implemented using PLC.

A back - twist mode with a maximum of 100% can be provided.

There are independent drive and ground shaft drive alternatives.

AC induction servo motors are used for reliable and energy - efficient operation.

Specification:

Payoff bobbin(mm)	Max. rotation speed (r/min)				Single wire diameter (mm)		Pitch (mm)	Max. OD(mm)	Power(KW)	Caterpillar(kg)	Take-up	Central height(mm)	Length * width(m)
Payoff bobbin(mm)	3B	4B	5B	6B	Soft conductor	Hard conductor	Pitch (mm)	Max. OD(mm)	Power(KW)	Caterpillar(kg)	Take-up	Central height(mm)	Length * width(m)
Ø1000	430	400	370	350	Ø8～Ø15	Ø3.0～Ø6.0	90-1400	45	37	1600	PN1600	1000	50×6
Ø1250	330	288	270	250	Ø8～Ø15	Ø3.0～Ø6.0	48-1500	60	55	2000	PN2000	1000	55×6
Ø1600	250	220	200	180	Ø10～Ø20	Ø3.5～Ø8.0	60-1500	70	90	2000	PN2500	1000	60×7
