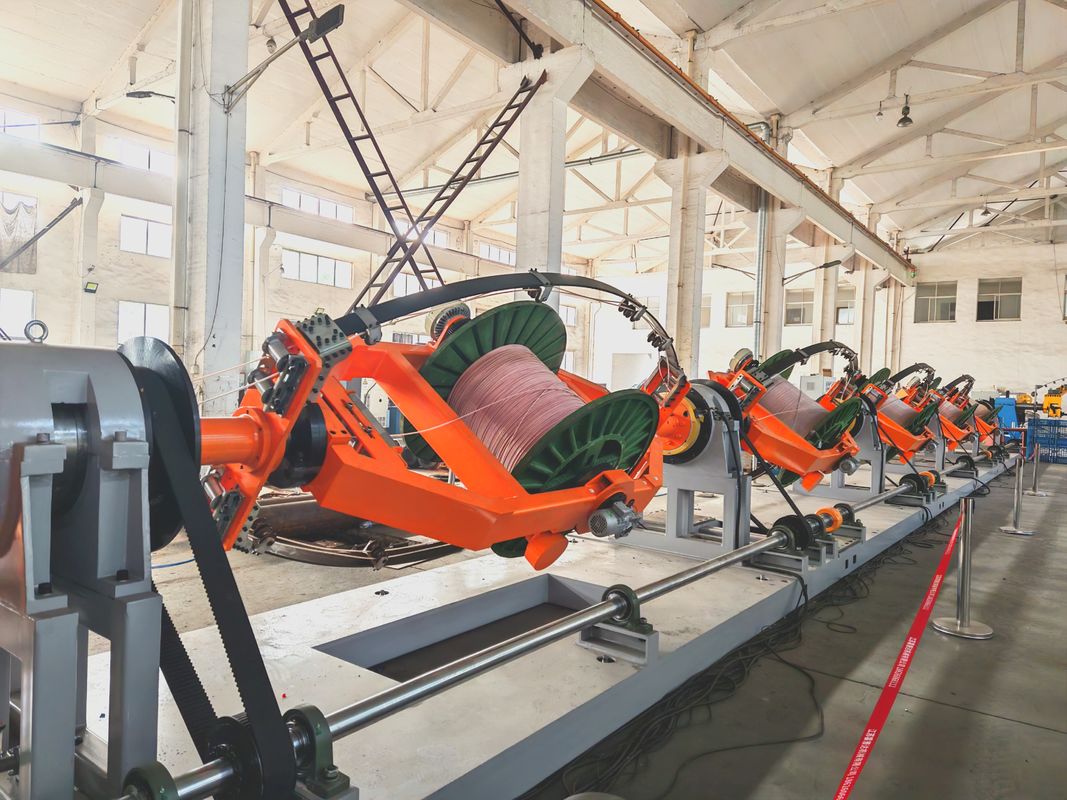

1250mm 1+3 PLC Bow Twister Machine For Cellphone Wire Untwist

Place of Origin	China
Brand Name	Hopda
Certification	ISO,CE
Model Number	1250, 1+5

Product Details

Single Wire Diameter (soft Conductor):

3-6mm

Single Wire Diameter (hard):

8-15mm

Max. OD:

60mm

Stranding Pitch:

48-1500mm

Max. Rotation Speed:

330rpm (3B)

Power:

55KW

Take-up Bobbin:

PN2000

Payoff Bobbin In Cage:

PN1250

Caterpillar:

2000kg

Center Height:

1000mm

Length * Width:

55m*6m

Highlight:

1250mm Bow Twister Machine

1+3 Bow Twister Machine

Cellphone Wire Bow Twister Machine

Payment & Shipping Terms

Minimum Order Quantity

1 set (stranding host can be ordered separately)

Price

negotiable

Packaging Details

Seaworthy packaging in containter for export

Delivery Time

if no stock in place, 30-60 calendar days

Payment Terms

T/T,L/C

Supply Ability

5 set per month

Product Description

Description and application:

Compared to the traditional cradles type cabling machine, our bow type laying up machine shows higher productivity. It is applicable to the stranding of soft structure cables such as control cables, ACSR overhead cables, power cables, as well as bare copper, aluminum, and aluminum alloy wires with a maximum of 7 cores. You can choose to have the back -twist function according to your needs. The drive system of the machine can be either independent or ground shaft - based.

Features:

The user - friendly human - machine interface allows for easy operation and all - around monitoring.
Automatic pitch adjustment is achieved through the use of PLC.
A back - twist mode with a maximum of 100% can be installed.
There are options of independent drive and ground shaft drive.
AC induction servo motors ensure reliable and energy - saving operation.

Specification:

Payoff bobbin(mm)	Max. rotation speed (r/min)				Single wire diameter (mm)		Pitch (mm)	Max. OD(mm)	Power(KW)	Caterpillar(kg)	Take-up	Central height(mm)	Length * width(m)
Payoff bobbin(mm)	3B	4B	5B	6B	Soft conductor	Hard conductor	Pitch (mm)	Max. OD(mm)	Power(KW)	Caterpillar(kg)	Take-up	Central height(mm)	Length * width(m)
Ø1000	430	400	370	350	Ø8～Ø15	Ø3.0～Ø6.0	90-1400	45	37	1600	PN1600	1000	50×6
Ø1250	330	288	270	250	Ø8～Ø15	Ø3.0～Ø6.0	48-1500	60	55	2000	PN2000	1000	55×6
Ø1600	250	220	200	180	Ø10～Ø20	Ø3.5～Ø8.0	60-1500	70	90	2000	PN2500	1000	60×7
