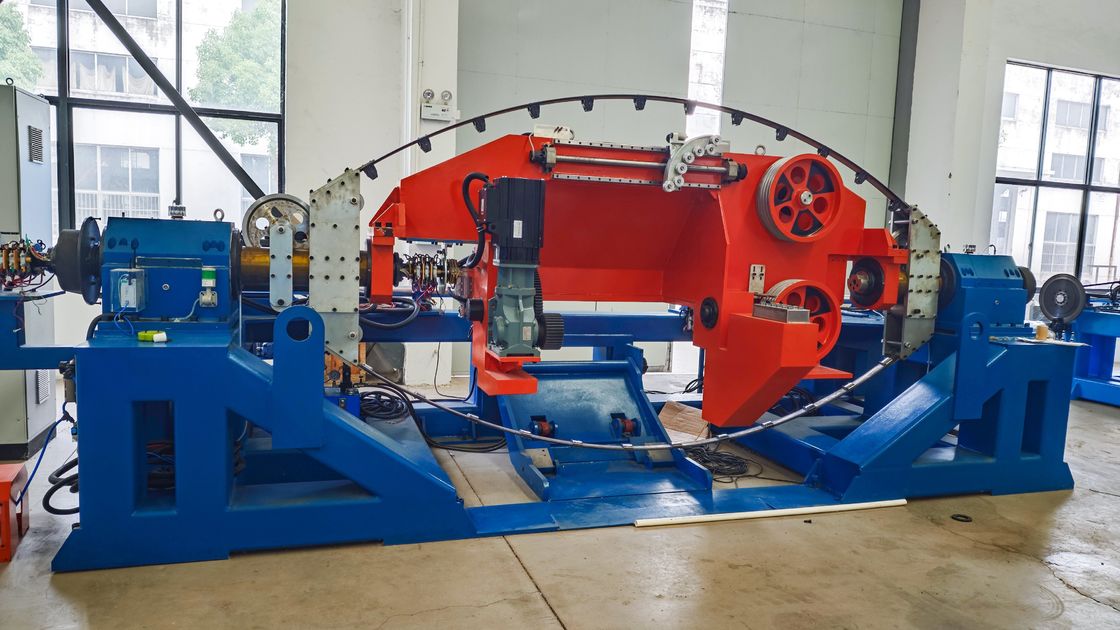

1600 Cu Wire Strander Machine For Phone Cable 0.25mm
  • 1600 Cu Wire Strander Machine For Phone Cable 0.25mm
  • 1600 Cu Wire Strander Machine For Phone Cable 0.25mm
  • 1600 Cu Wire Strander Machine For Phone Cable 0.25mm
  • 1600 Cu Wire Strander Machine For Phone Cable 0.25mm
  • 1600 Cu Wire Strander Machine For Phone Cable 0.25mm
  • 1600 Cu Wire Strander Machine For Phone Cable 0.25mm
1600 Cu Wire Strander Machine For Phone Cable 0.25mm

1600 Cu Wire Strander Machine For Phone Cable 0.25mm

Place of Origin China
Brand Name Hopda
Certification ISO,CE
Model Number 1250
Product Details
Inlet Wire Diameter:
1.0mm - 3.0mm
Max. Outer Diameter:
10mm
Stranded Section:
3.5-70mm2
Stranding Pitch Range:
40-350mm
Bow Rotation Speed:
Max. 800 Rpm
Line Speed:
Max. 150m/min
Applicable Reel Size::
Ø1250*960*Ø80
Main Motor:
ISMG2-42D15CD-U131FA
Traction Motor:
ISMG1-22D15CD-U131FA
Installed Power:
90KW
Daily Operation Power:
15KW
Highlight:

phone cable wire strander machine

,

0.25mm wire strander machine

,

1600 Cu wire strander machine

Payment & Shipping Terms
Minimum Order Quantity
1 set (Stranding host can be ordered separately)
Price
negotiable
Packaging Details
Standard packaging, Cargo shipment
Delivery Time
if no stock in place, 30-60 calendar days
Payment Terms
T/T,L/C
Supply Ability
10 sets per month
Product Description

Application and Feature:

Our double - twist strander can be employed for twisting multi - strand bare copper, aluminum, and aluminum alloy wires, plus coated cored wires like rubber wires, power wires, and control cables. Our model has several main differences compared to others:

  1. It can reach a line speed of up to 140 meters per minute.
  2. A high - tech temperature control system, paired with a powerful compressor, ensures non - stop working.
  3. The carbon - fibre bow part offers extra stiffness and is light.
  4. An intelligent communication module reduces the amount of circuits.
  5. The servo motor can save energy by as much as 15%.





Technical specification:



Specs/Model DTE-1250D DTE-1600D DTE-2000D
Inlet wire diameter(mm) Ø1.0-3.0 Ø1.5-4.8 Ø1.5-4.8
Stranded section (1+6+12)(mm2) 3.5-70 16-240 16-240
Stranded section (1+6)(mm2) 3.5-50 16-50 16-50
Bunching section (Cu)(mm2) 3.5-50 16-150 16-240
Bunching section (Al)(mm2) 3.5-70 16-240 16-300
Max.stranded diameter(mm) Ø10 Ø25 Ø35
Max. Compression ratio 85-90% 85-90% 85-90%
Max. Line speed (m/min) 70-150 170-200 170-200
Rotation speed (rpm) 800/max. 500/max. 350/max.
Pitch (mm) 40-350 50-600 60-600




Production line composition:

Standard configuration includes:

1. Pay-off stand (normally 7-head up to 19-head)

2. Tension stand

3. Rotary wire assembly rack (where wires come together and form one strand)

4. Stranding host (which holds the take-up bobbin and where the actual rotation happens)



1600 Cu Wire Strander Machine For Phone Cable 0.25mm 0


Terms and conditions:

  • Price terms: FoB, C&F or CIF
  • Production period: 60-90 days
  • Warranty: 1 year except for man-made damages



Support and Services:

The Double Twist Stranding Machine is a high-performance piece of equipment designed to provide efficient stranding of wires and cables. Our product technical support and services include:

  • Installation and commissioning of the machin
  • Training for operators and maintenance personnel
  • Regular maintenance and repair services
  • Supply of spare parts and components
  • Technical troubleshooting and problem-solving
  • Upgrades and customization services
  • 24/7 customer support and assistance

Our team of experienced engineers and technicians is committed to providing you with the best possible support and services to ensure your Double Twist Stranding Machine operates at peak performance levels and meets your production needs.


More Images:

1600 Cu Wire Strander Machine For Phone Cable 0.25mm 11600 Cu Wire Strander Machine For Phone Cable 0.25mm 21600 Cu Wire Strander Machine For Phone Cable 0.25mm 3
