Application and Feature:
The double - twist strander we have is suitable for the twisting of multi - strand bare copper, aluminum, aluminum alloy wires and coated cored wires such as rubber wires, power wires and control cables. Our model varies from others' in several key ways:
1. Line speed can reach up to 200 m/min
2. High-tech temperature control system combined with powerful compressor to achieve non-stop operation
3. Carbon-fibre bow part for extra stiffness and lightness
4. Intelligent communication module for reduced number of circuits
5. Servo motor for saving up to 15% energy.
Technical specification:
| Specs/Model |
DTE-1250D |
DTE-1600D |
DTE-2000D |
| Inlet wire diameter(mm) |
Ø1.0-3.0 |
Ø1.5-4.8 |
Ø1.5-4.8 |
| Stranded section (1+6+12)(mm2) |
3.5-70 |
16-240 |
16-240 |
| Stranded section (1+6)(mm2) |
3.5-50 |
16-50 |
16-50 |
| Bunching section (Cu)(mm2) |
3.5-50 |
16-150 |
16-240 |
| Bunching section (Al)(mm2) |
3.5-70 |
16-240 |
16-300 |
| Max.stranded diameter(mm) |
Ø10 |
Ø25 |
Ø35 |
| Max. Compression ratio |
85-90% |
85-90% |
85-90% |
| Max. Line speed (m/min ) |
70-150 |
170-200 |
170-200 |
| Rotation speed (rpm) |
800/max. |
500/max. |
350/max. |
| Pitch (mm) |
40-350 |
50-600 |
60-600 |
Production line composition:
Standard configuration includes:
1. Pay-off stand (normally 7-head up to 19-head)
2. Tension stand
3. Rotary wire assembly rack (where wires come together and form one strand)

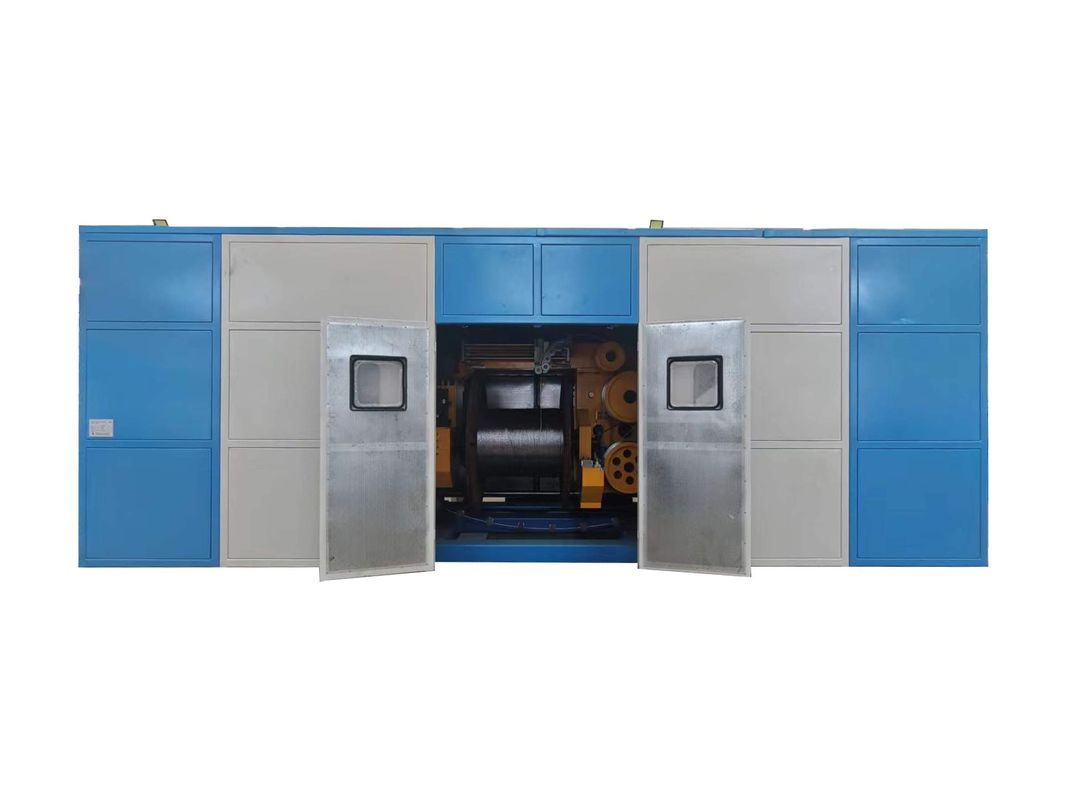

4. Stranding host (which holds the take-up bobbin and where the actual rotation happens)
Terms and conditions:
- Price terms: FoB, C&F or CIF
- Production period: 60-90 days
- Warranty: 1 year except for man-made damages
Support and Services:
The Double Twist Stranding Machine is a high-performance piece of equipment designed to provide efficient stranding of wires and cables. Our product technical support and services include:
- Installation and commissioning of the machin
- Training for operators and maintenance personnel
- Regular maintenance and repair services
- Supply of spare parts and components
- Technical troubleshooting and problem-solving
- Upgrades and customization services
- 24/7 customer support and assistance
Our team of experienced engineers and technicians is committed to providing you with the best possible support and services to ensure your Double Twist Stranding Machine operates at peak performance levels and meets your production needs.
