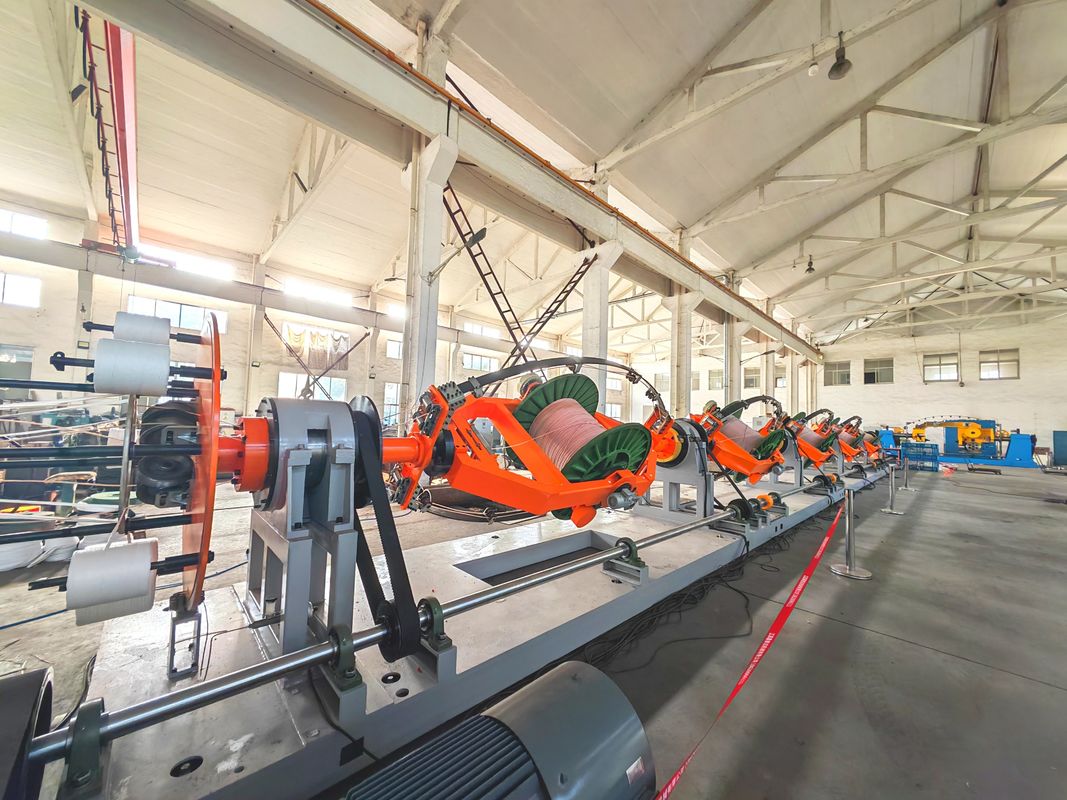

1000mm 1+6 PLC Control Skip Strander Machine For Data Cable Backtwist

Place of Origin	China
Brand Name	Hopda
Certification	ISO,CE
Model Number	1600, 1+5

Product Details

Single Wire Diameter (soft Conductor):

10-20mm

Single Wire Diameter (hard):

3.5-8mm

Max. OD:

70mm

Stranding Pitch:

60-1500mm

Max. Rotation Speed:

250rpm (3B)

Traction Speed:

120m/min

Power:

90KW

Take-up Bobbin:

PN2500

Payoff Bobbin In Cage:

PN1600

Center Height:

1000mm

Highlight:

1000mm skip strander machine

PLC control skip strander machine

Data Cable Backtwist Skip Strander Machine

Payment & Shipping Terms

Minimum Order Quantity

1 set (stranding host can be ordered separately)

Price

negotiable

Packaging Details

Seaworthy packaging in containter for export

Delivery Time

if no stock in place, 30-60 calendar days

Payment Terms

T/T,L/C

Supply Ability

5 set per month

Product Description

Description and application:

Compared with the conventional cradles type cabling machine, our bow type laying up machine has a higher level of productivity. It can strand soft structure cables such as control cables, ACSR overhead cables, power cables, and bare copper, aluminum, and aluminum alloy wires with up to 7 cores. You can choose to include the back - twist function according to your specific needs. The machine can be driven independently or by a ground shaft.

Features:

The user - friendly human - machine interface allows for easy operation and complete monitoring.

Automatic pitch adjustment is carried out by means of PLC.

A back - twist mode with a maximum of 100% can be incorporated.

There are choices of independent drive and ground shaft drive.

AC induction servo motors are used for reliable and energy - efficient operation.

Specification:

Payoff bobbin(mm)	Max. rotation speed (r/min)				Single wire diameter (mm)		Pitch (mm)	Max. OD(mm)	Power(KW)	Caterpillar(kg)	Take-up	Central height(mm)	Length * width(m)
Payoff bobbin(mm)	3B	4B	5B	6B	Soft conductor	Hard conductor	Pitch (mm)	Max. OD(mm)	Power(KW)	Caterpillar(kg)	Take-up	Central height(mm)	Length * width(m)
Ø1000	430	400	370	350	Ø8～Ø15	Ø3.0～Ø6.0	90-1400	24	37	1600	PN1600	1000	50×6
Ø1250	330	288	270	250	Ø8～Ø15	Ø3.0～Ø6.0	48-1500	60	55	2000	PN2000	1000	55×6
Ø1600	250	220	200	180	Ø10～Ø20	Ø3.5～Ø8.0	60-1500	70	90	2000	PN2500	1000	60×7
