High Speed Skip Stranding Machines For Copper And Aluminum Wire Stranding

Place of Origin	China
Brand Name	Hopda
Certification	ISO,CE
Model Number	1600, 1+5

Product Details

Single Wire Diameter (soft Conductor):

10-20mm

Single Wire Diameter (hard):

3.5-8mm

Max. OD:

70mm

Stranding Pitch:

60-1500mm

Max. Rotation Speed:

250rpm (3B)

Traction Speed:

120m/min

Power:

90KW

Take-up Bobbin:

PN2500

Payoff Bobbin In Cage:

PN1600

Caterpillar:

2000kg

Center Height:

1000mm

Highlight:

High Speed Skip Stranding Machines

Copper Wire Skip Stranding Machines

Aluminum Wire Skip Stranding Machines

Payment & Shipping Terms

Minimum Order Quantity

1 set (stranding host can be ordered separately)

Price

negotiable

Packaging Details

Seaworthy packaging in containter for export

Delivery Time

if no stock in place, 30-60 calendar days

Payment Terms

T/T, L/C

Supply Ability

5 set per month

Product Description

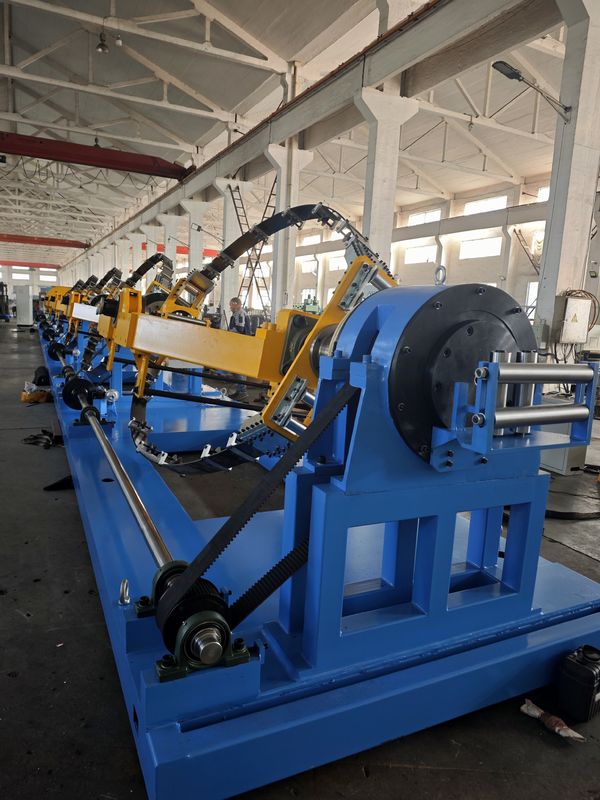

High Speed Skip Stranding Machines For Copper And Aluminum Wire Stranding

Description and application:

With superior productivity than the conventional cradles type cabling machine, our bow type laying up machine is applicable to the stranding of both soft structure cables such as control cable, Aluminum Conductor Steel Reinforced (ACSR) overhead cable, power cable and bare copper, aluminum and aluminum alloy wires with up to 7 cores. The back - twist function is optional according to your need. The drive of the machine can be independent or by ground shaft.

Features:

User friendly human-machine interface for effortless operation and comprehensive monitor
Adopting PLC for automatic pitch adjustment
Can be equipped with a back-twist mode with a maximum of 100%.
Independent drive or ground shaft drive
Utilisation of AC induction servo motors for reilable and energy-efficient operation

Specification:

Payoff bobbin(mm)	Max. rotation speed (r/min)				Single wire diameter (mm)		Pitch (mm)	Max. OD(mm)	Power(KW)	Caterpillar(kg)	Take-up	Central height(mm)	Length * width(m)
Payoff bobbin(mm)	3B	4B	5B	6B	Soft conductor	Hard conductor	Pitch (mm)	Max. OD(mm)	Power(KW)	Caterpillar(kg)	Take-up	Central height(mm)	Length * width(m)
Ø630	880	850	830	800	Ø5～Ø10	Ø1.5～Ø4.0	44-333	15	37	800	PN1250	1000	35×5
Ø800	680	650	620	600	Ø5～Ø10	Ø2.0～Ø5.0	47-228	20	37	1250	PN1600	1000	43×5
Ø1000	430	400	370	350	Ø8～Ø15	Ø3.0～Ø6.0	90-1400	24	37	1600	PN1600	1000	50×6
Ø1250	330	288	270	250	Ø8～Ø15	Ø3.0～Ø6.0	48-1500	60	55	2000	PN2000	1000	55×6
Ø1600	250	220	200	180	Ø10～Ø20	Ø3.5～Ø8.0	60-1500	70	90	2000	PN2500	1000	60×7
