1246 Cable Coiling Machine Automatic Winding And Wrapping With Film

Product Description:

Our 1246 wire coiling machine offers enterprises a fully automatic wire - product packaging solution. It excels with its precisely calibrated wire inlet angle and traversing system, slashing labor hours and eliminating human errors from distraction.

Features:

• The whole line adopts PLC and touch-screen to control the line automatically during coiling and strapping. Easy to operate human-machine interface.
• The traversing system is adopted Serve motor so that the coil of cable is orderly and beautiful.
• Automatic belt the bandlet to adopt the advanced strapping unit. The success rate of strapping is very high and it reaches 99.99%.

Technical Parameters

Model	Applicable wire and cable			Max. coil diameter	Coiling aperture	Coiling width (or height)	Rotation speed	Strap size	Strap reel size	Wrapping film size
	BVVB cable (Hard flat cable)	BV round cable	BVR cable
1246	2×1²	BV0.5-6²	BVR0.5-6²	300mm	120mm	50-140mm	940rpm			Φ250×φ75mm
1860	2×1.5²-3×4²	3×1.5²-5×2.5²	2×0.75²-5×2.5²	500 mm	200 mm	60-200 mm	720rpm	Width: 10-12mm Thickness: 0.8mm	φ400×200mm	Φ300×φ75mm

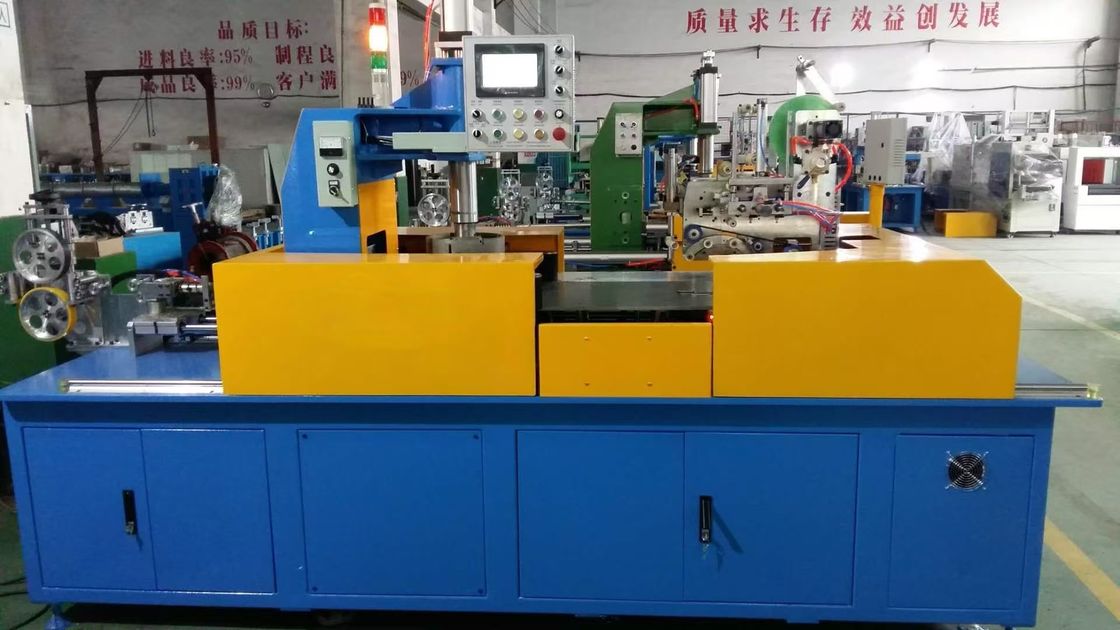

Image:
