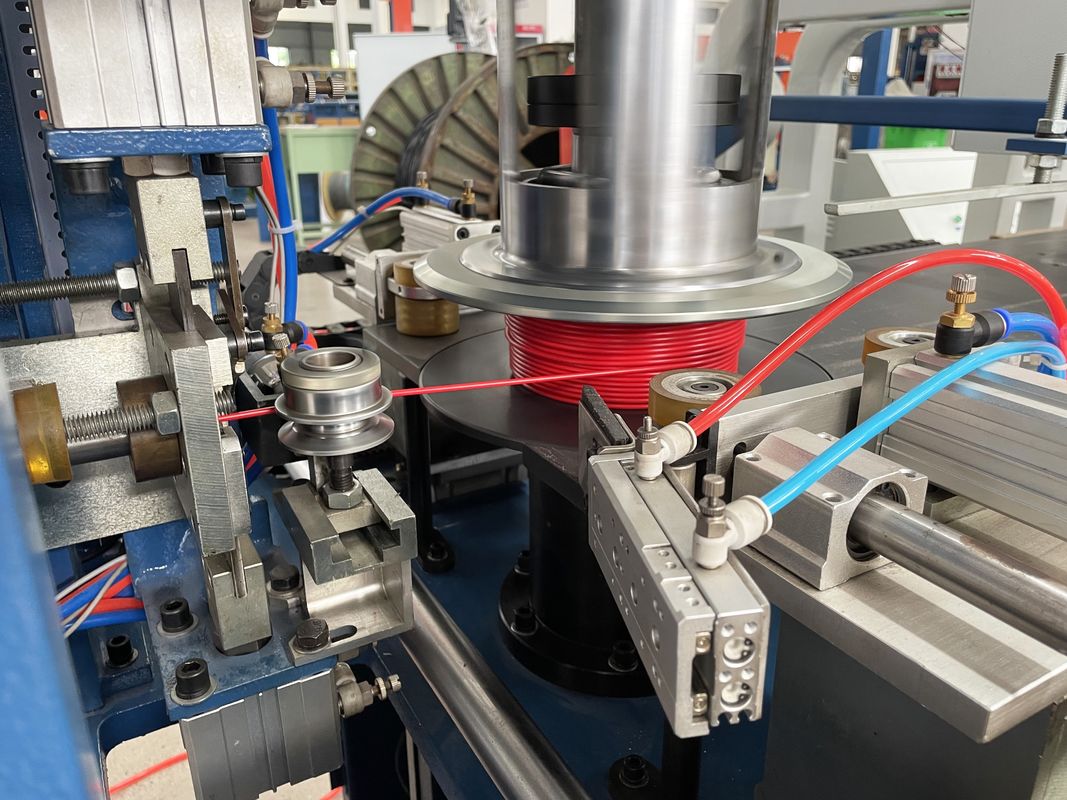

Automatic Detection Automatic Cable Strapping Machine Coil With PLC Control Panel

Automatic Detection Automatic Cable Strapping Machine Coil With PLC Control Panel

Specifications:

Application:

The line is suitable for spool-coiling and packing on site for many kinds of cable and optical cable. Automatically Store, feed, coil, wrap and label. The machine could be used with extrusion line together or could be used with active pay-off machine. It is suitable for hard and flexible cable.

Features:

• Adopt PLC and touch-screen to control the line automatically during coiling and packing. The man-computer interface operation face and the operation is easy.

• The line is suitable for many kinds of cable and optical cable.
• The machine could be used with extrusion line together or could be used with active pay-off machine.
• The machine could adjust the height of the cable coil automatically by the touch-screen according to the different diameter of the cable. Computerized memory can store 100 different specifications of the coil. When you need change the product specifications, you just choose the specifications of the stored data. Don’t need input again. It can produce immediately.
• Because of multiple operations at the same time, the production efficiency is very high.

Machine Main Feature:

1. Connect with the extrusion line for the non-stop cable coiling and binding operation.
2. Machine with Auto holding arm adjust system after finished coiling.
3. Machine can be connected with labeling machine.
4. Can also choose robot stacking system for full automatic running of the packing.
5. System with automatic detection function, when problem come out, the machine can auto detect the mistakes, and send message to warn the operator.
6. Microcomputer memory can store 99 different specifications of wire coil. When you need to change the productspecifications, you just need to read the data of the stored specifications. No need to input again, and you can produce immediately.
7. Traverse device: by adopts Mitsubishi servo motor and synchronizes with the main machine of coiling.
8. Instrument and switch on the operation panel: touch screen, speed adjustment button.
9. Speed can be adjusted on the touch screen or the speed adjustment button.
10. The machine PLC has the power frequency sparker contact(the power frequency spark machine is provided by the customer)
