500mm Cable Coiling Machine With Strapping And Thermoplastic Packaging Unit Diameter
  • 500mm Cable Coiling Machine With Strapping And Thermoplastic Packaging Unit Diameter
  • 500mm Cable Coiling Machine With Strapping And Thermoplastic Packaging Unit Diameter
  • 500mm Cable Coiling Machine With Strapping And Thermoplastic Packaging Unit Diameter
500mm Cable Coiling Machine With Strapping And Thermoplastic Packaging Unit Diameter

500mm Cable Coiling Machine With Strapping And Thermoplastic Packaging Unit Diameter

Place of Origin China
Brand Name Hopda
Certification ISO,CE
Model Number 500
Product Details
Applicable Solid Falt Cable:
2*1.5mm2----3*4mm2
Applicable Solid Round Cable:
3*1.5mm2---5*2.5mm2
Applicable Soft Round Cable:
3*1.5mm2---5*2.5mm2
Applicable Wire Diameter:
φ5.0-φ15mm
Coiling Head Rotation Speed:
720RPM
Cable Coil Outer Diameter:
φ500mm
Cable Coil Inner Diameter:
φ200mm（Customizable)
Coil Width (height):
60～200mm
PP Strap:
Width:15mm; Thickness: 0.6-0.8mm
Strap Coil Inner Diameter:
φ200mm
Strap Coil Outer Diameter:
φ430mm
Strap Coil Width (Height):
170mm
Strap Number:
1 Strap Unit For 2-3 Straps
Joint Method:
Heat Pressing
Strapping Speed:
3 Coils/min
Highlight:

500mm Cable Coiling Machine

,

Auto Cable Coiling And Strapping Machine

,

CableCoiler 500

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiable
Packaging Details
Standard packaging, Cargo shipment
Delivery Time
30-60 days
Payment Terms
T/T, L/C
Supply Ability
10 sets per month
Product Description
500mm cable coiling machine with strapping and thermoplastic packaging unit diameter



Product Description

Our 260 Automatic Cable Coiling and Strapping Machine is engineered to collaborate with the 260 Thermoplastic Packaging Unit, attaining a neat and visually appealing presentation of cable products. The precisely calibrated wire inlet angle in conjunction with the accurately controlled traversing system makes this machine unique. Owning this machine brings a revolutionary change as it markedly reduces the labor time spent on product packaging and wipes out human errors brought about by distractions or lapses in attention.



Features:

  • Automation is realized through the application of PLC and a human-machine touch screen interface.
  • A servo motor is utilized to ensure cable coils are arranged in an orderly and appealing manner.
  • The strapping success rate attains 99.99%.
  • The number of straps can be adjusted within the range of 2 to 4.



Technical Parameters

Spec/model 260 500

Applicable wire type and size



 1.5-6mm²BV and BVR building cable

Solid flat cable: 2*1.5mm2----3*4mm2

Solid round cable: 3*1.5mm2---5*2.5mm2

Soft round cable: 0.75 mm2---5*2.5 mm2
Applicable wire diameter φ3.0-φ5.0mm φ5.0-φ15mm
Coiling head rotation speed 1800RPM  720RPM
Cable coil outer diameter φ250mm  φ500mm
Cable coil inner diameter φ130mm φ200mm(Customizable)
Coil width (height) 50～100mm  60～200mm
PP strap Width:12mm;thickness: 0.4-0.6mm. Width:15mm; thickness: 0.6-0.8mm
Strap coil inner diameter φ130mm φ200mm
Strap coil outer diameter φ250mm φ430mm
Strap coil width (Height) 50～100mm 170mm
Strap number 2 strap units, each for 2 straps 1 strap unit for 2-3 straps
Joint method Heat pressing Heat pressing
Strapping speed 4 coils/min 3 coils/min

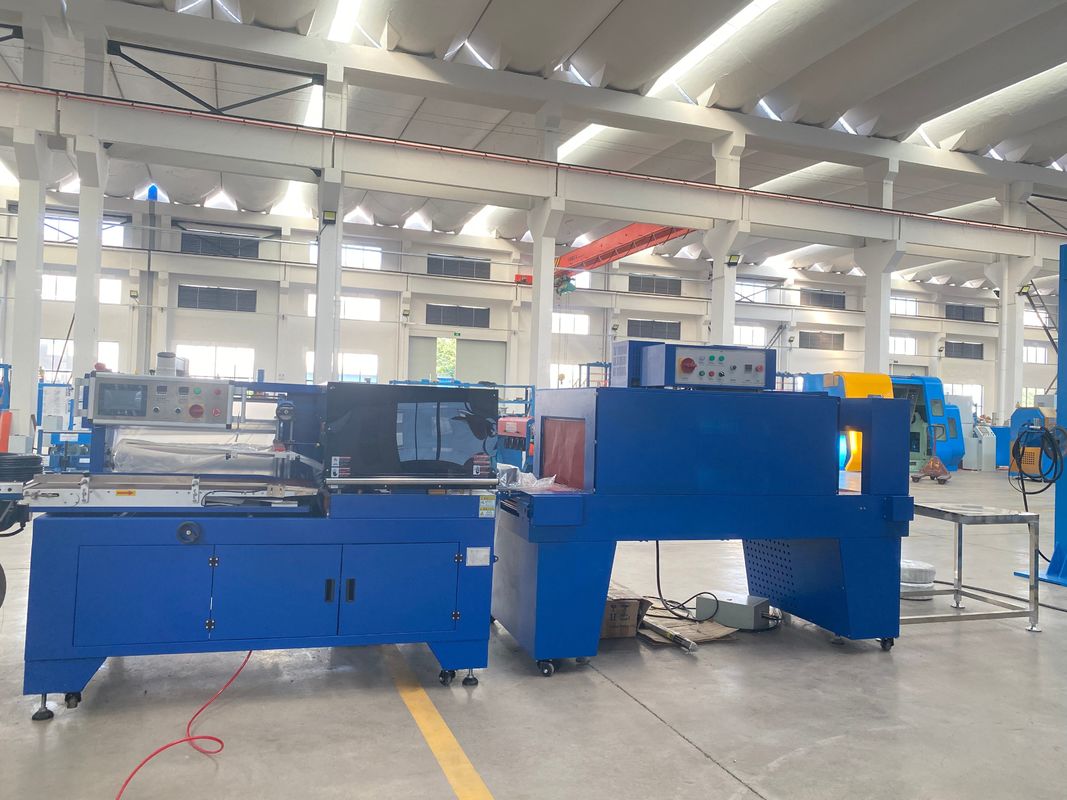

500mm Cable Coiling Machine With Strapping And Thermoplastic Packaging Unit Diameter 0

500mm Cable Coiling Machine With Strapping And Thermoplastic Packaging Unit Diameter 1
