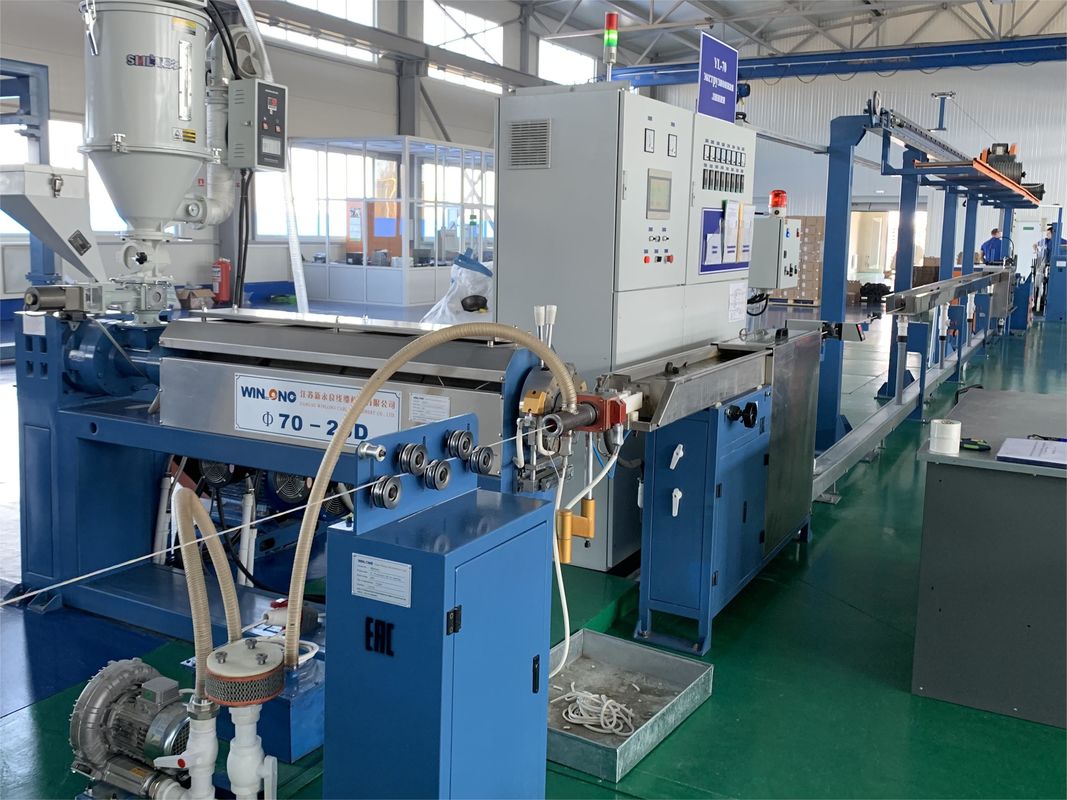

80-90 specialized LSZH Cable extrusion line
Specification:
|
Model
|
80-90 |
|
Screw Dia.
|
80-90 |
|
Screw L/D
|
25:1 |
| Extrusion capacity (kg/h) |
PVC |
250-350 |
| LSZH |
450-600 |
|
Product Diameter (mm)
|
20-50 |
|
Pay-off bobbin (mm)
|
500/630/800 |
|
Tractor type
|
Capstan type/caterpillar |
| Accumulate length (m) |
200 |
|
Take-up bobbin (mm)
|
800/1500 |
| Line speed (m/min) |
200 |
|
Extrusion Power (KW)
|
90-110kw |
Description:
The machine is used for insulating or sheathing for LSZH cable. Featuring a specializes screw for LSZH material. Compression ratio is strictly controlled to deliver the smoothest extruding process. Tailored heating and cooling system to ensure the optimal operating temperature of the machine and user-friendly PLC control panel is in place for quick adjustment to production configuration and settings.
Feature:
l According to the special characteristics of LSZH material, adopt the specialized screw and the compression ratio is controlled strictly.
l Ensure the tensile strength, elongation and surface finish of LSZH material, the squeezing mould is chosen during insulating and the semi-squeezing mould is chosen during sheathing.
l The whole line is controlled by PLC with human-machine interaction interface. Digital control technique and PLC program make entire control system dependable and flexible.
The cooling system of the whole line is very important to extrude LSZH material. So the whole line adopt special heating and cooling temperature control system.
support and services:
Quality Assurance:Quality assurance for all products
Price Advantage: Competitive price advantage
Support formulation: can be customized according to customer requirements
After-sales guarantee: 24-hour after-sales service nationwide
packing and shipping:
All packaging will be designed to ensure the safety of the products during transportation.
All shipments are accompanied by a packing list.
