Specialised 70mm High Speed Extruder Cable Insulation And Sheathing With PVC
  • Specialised 70mm High Speed Extruder Cable Insulation And Sheathing With PVC
  • Specialised 70mm High Speed Extruder Cable Insulation And Sheathing With PVC
  • Specialised 70mm High Speed Extruder Cable Insulation And Sheathing With PVC
  • Specialised 70mm High Speed Extruder Cable Insulation And Sheathing With PVC

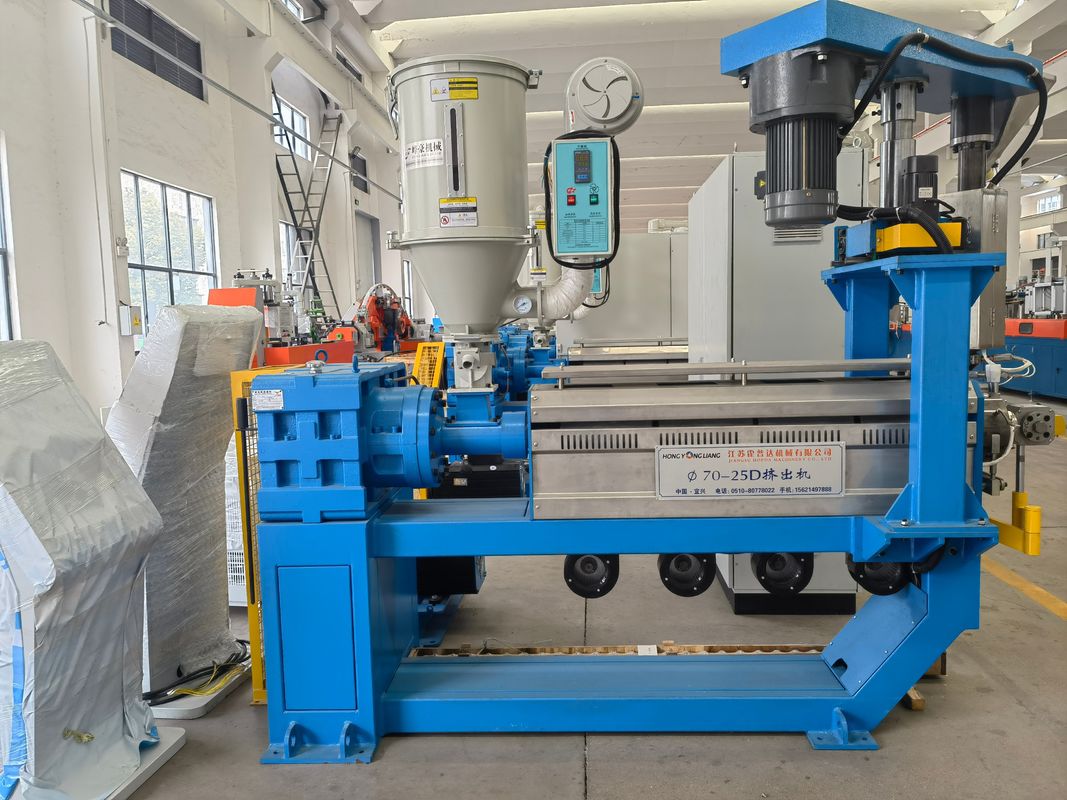

Specialised 70mm High Speed Extruder Cable Insulation And Sheathing With PVC

Specialised 70mm High Speed Extruder Cable Insulation And Sheathing With PVC

Place of Origin China
Brand Name Hopda
Certification ce.ul
Model Number 70-25D
Product Details
Wire Outlet Diameter:
0.5-25.0mm
L/D Ratio:
25:1
Extrusion Capacity (PVC):
200 Kg/h
Extrusion Capacity (PE):
170 Kg/h
Extrusion Capacity (LSZH):
150 Kg/h
Extrusion Capacity (HFFR):
160 Kg/h
Main Power:
37-55kW
Traction Power:
4 KW
Take-up Power:
4 KW
Highlight:

70mm pvc cable extruder machine

,

High Speed pvc cable extruder machine

,

Insulation Sheathing pvc cable extruder machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiable
Packaging Details
Regular package, cargo shipment
Delivery Time
60-90days
Payment Terms
L/C, T/T
Supply Ability
10 sets per month
Product Description

Product Description:

The high-speed extrusion series we offer can be applied to insulate and sheath bare wires made of copper, aluminum, and aluminum alloy, using materials such as PVC, PE, LSZH, HFFR, and XLPE.



Features:

  1.  Can be configured with additional extruders for co-extrusion or applying multiple colours on insulation layer
  2.  PLC control and user-friendly touch screen interface.
  3.  Precise fixed-center crosshead for minimal need for adjustment.
  4.  The productioin line adopts various detecting devices such as precision meter counter, lazer diameter gauge and spark tester to guarantee the consistency in product quality.​



Technical Parameters:

Model/specs 35-25D 45-25D 50-25D 65-25D 70-25D 80-25D 90-25D 100-25D 120-25D 150-25D 200-25D
Screw diameter (mm) Ø35 Ø45 Ø50 Ø60 Ø70 Ø80 Ø90 Ø100 Ø120 Ø150 Ø200
L/D ratio 18:1 25:1
Standard PVC(kg/h) 21 56 70 120 140 205 280 360 520 800 1120
Boosted productivity PVC(kg/h) 30 80 100 175 200 290 400 520 750 1150 1600
Standard LSZH(kg/h) 25 70 90 155 180 260 360 470 675 1050 1450
Boosted productivity LSZH(kg/h) 30 85 110 190 220 315 435 565 810 1260 1740
HFFR(kg/h) 20 65 80 140 160 230 320 420 600 900 1300
Power (Kw) 15 15-22 18-30 30-45 37-55 55-75 90-110 110-132 160-185 185-250 280-355
Outlet wire diameter (mm) 0.2-1.0 0.5-3.0 0.8-5.0 1.5-8.0 5-25 16-35 16-50 20-80 30-80 40-140 50-200






Product images:

Specialised 70mm High Speed Extruder Cable Insulation And Sheathing With PVC 0Specialised 70mm High Speed Extruder Cable Insulation And Sheathing With PVC 1Specialised 70mm High Speed Extruder Cable Insulation And Sheathing With PVC 2Specialised 70mm High Speed Extruder Cable Insulation And Sheathing With PVC 3Specialised 70mm High Speed Extruder Cable Insulation And Sheathing With PVC 4Specialised 70mm High Speed Extruder Cable Insulation And Sheathing With PVC 5Specialised 70mm High Speed Extruder Cable Insulation And Sheathing With PVC 6Specialised 70mm High Speed Extruder Cable Insulation And Sheathing With PVC 7Specialised 70mm High Speed Extruder Cable Insulation And Sheathing With PVC 8
