630 Cu Wire Bunching Machine For Electric And Phone Cable 0.08mm
  • 630 Cu Wire Bunching Machine For Electric And Phone Cable 0.08mm
  • 630 Cu Wire Bunching Machine For Electric And Phone Cable 0.08mm
630 Cu Wire Bunching Machine For Electric And Phone Cable 0.08mm

630 Cu Wire Bunching Machine For Electric And Phone Cable 0.08mm

Place of Origin China
Brand Name Hopda
Certification ISO,CE
Model Number GF630/800
Product Details
Power Supply:
50HZ,380V
Usage:
For Core Wire Twisting
Display:
PLC
Warranty:
12 Months
Power:
Electronic
High Light:
2000r/min Cable Twisting Machine, 1+6+12 BVR Cable Twisting Machine, 1+6+12 BVR Cable Buncher
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiable
Packaging Details
wooden packing
Delivery Time
20-30
Payment Terms
T/T, L/C
Supply Ability
100 set per month
Product Description

630 Cu wire wire bunching machine for electric and phone cable 0.08mm



Specification:

Serial

number

 Configuration Specification
1 Machine model ￠650
2 Stranding Applicable for stranding of silver-plated wires, tin-plated wires, enameled wires, and bare copper wires with more than seven strands.
3 Inlet Wire diameter ￠0.16 - ￠1.0mm
4 Stranded cross section 0.4m㎡ - 6.0m㎡
5 Stranding pitch 11.46 - 138.77mm (attached stranding pitch table).
6 Stranding direction Left and right directions are selectable.
7 Take-up reel (PN.PND) Standard ABS reel: outer diameter ￠630 x outer width 475 x inner width 415 x inner hole ￠56 (mm), (or as per customer's provided size).
8 Wire traversing ￠30mm smooth rod bearing type wire traversing. The wire arranging amplitude and pitch are adjustable (Shanxi Tianxiang).
9 Spindle center height 830mm
10 Spindle lubrication method Lubricating oil
11 Bearing Adopts original imported brand NSK from Japan.
12 Brake system Electromagnetic brake. The internal brake is automatically adjusted by magnetic powder clutch.
13 Protection Automatically brakes when there is an internal or external wire break. Automatically stops when the counting meter is in place.
14 Safety protection For each openable door, if the lifting is not in place, it cannot start or will automatically brake.
15 Indication Corresponding indicator lights indicate the machine status and faults.
16 Electrical Frequency converter (Inovance), touch screen (MCGS), PLC (Siemens).
17 Main motor power 7.5KW (Huadong Electromechanical)
18 Take-up tension Adopts magnetic powder clutch (Weizheng) for automatic tracking tension.
19 Noise index Approximately 75 decibels.
20 Machine weight Approximately 3500KG (Length: 3400mm; Width: 1500mm; Height: 1500mm).
21 Paint color RAL5015 German blue (or as per customer's request).




Description and application:

Our double twist bunching machine, applied to bunch-twisting copper conductor, copper clad aluminum wire, varnished wire, tinned wire, etc., boasts industry-leading specifications, with a maximum speed of 1600 rounds per minute and the capability to strand wires ranging from ￠0.16 - ￠1.0mm  in diameter. Additionally, its advanced auto-stop capability contributes to a smoother stranding process, enhancing efficiency and productivity. Its advanced auto-brake feature ensures minimal waste of resources in the event of wire breakage, whether internal or external.



Features:

  • The maximum spindle speed is 1600 RPM.
  • Automatic tension control: During stranding, when winding from the bottom of the reel to a full reel, the take-up tension needs to continuously increase. This machine can automatically track and adjust the take-up tension to make the take-up tension of the entire reel uniform. At the same time, this machine can also adjust the take-up tension without stopping.
  • The wire passing system is of the latest structure. The wire passes directly from the spindle guide wheel to the bow belt, eliminating the scratching and strand jumping phenomena caused by the failure of the corner guide wheel on the aluminum reel.

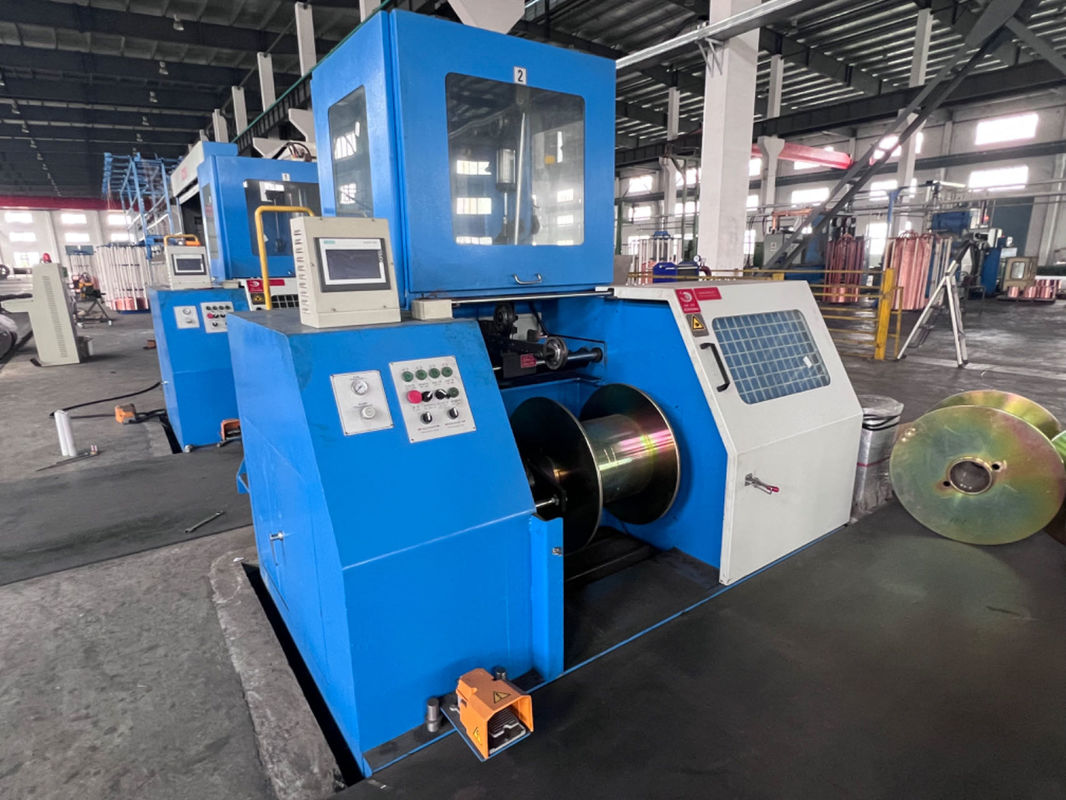

630 Cu Wire Bunching Machine For Electric And Phone Cable 0.08mm 0630 Cu Wire Bunching Machine For Electric And Phone Cable 0.08mm 1

Tags:

Cable Stranders,

Bow Power Cable Machine,

double twist bunching machine wire
