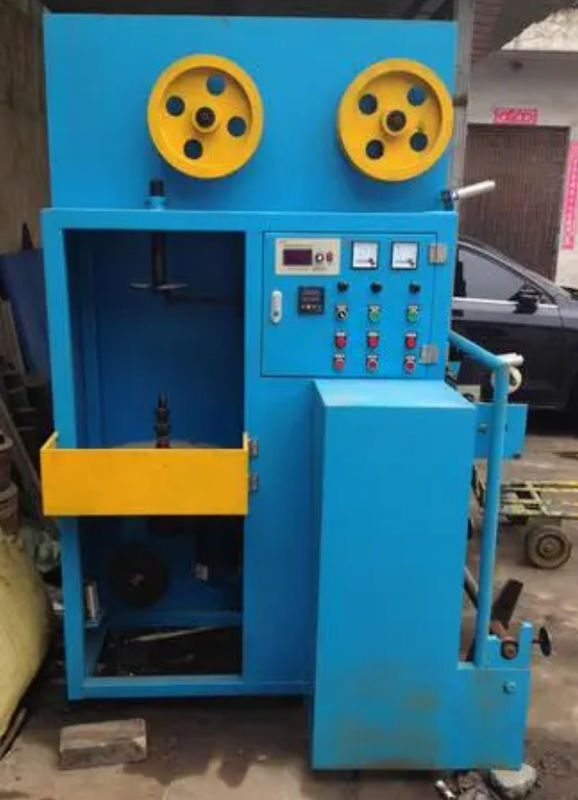

High Speed Cable Wrapping Machine Wire Taping Machine 600x2 Head 650rpm

High Speed Cable Wrapping Machine Wire Taping Machine 600x2 Head 650rpm

Specification:

Application:

Applied to tape horizontally for copper wire, insulation wire and twisted-cable. The tapping material is mica tape, aluminum foil, fireproof tape, PET foil, etc.

Feature:

• The tape could be used continuously. The machine could store 10 times the quantity of the tape as the old type.
• Universally applicable: used for twisted wire and parallel wire double/single layer continuously centering wrapping.
• High output: high rotate speed,work rate is 2.5 times than traditional type.
• Steady tension control: Automatic tension trace instrument,taping tension keep constant from start to end. Needn't any artificial adjustment.
• Wrapping distance accurate: Setting pitch on touch screen, controlled by PLC, wrapping point is steady while it's normal work or accelerate and decelerate.
• Good traversing: Take-up traversing adopted axis-row type structure,spacing can be set arbitrary.
• High quality: Used for making HDMI,DP,ATA,STAT and such high frequency wire, pass rate 100%.

Product Description

A high-speed cable wrapping machine or wire taping machine with a specification of "600x2 Head 650rpm" typically refers to the machine's configuration and operational parameters. Here's a breakdown of what these specifications generally indicate:

1. 600x2 Head: This indicates that the machine has two taping heads, each capable of accommodating up to 600mm (or another unit of measurement) of tape width. Having multiple heads allows for simultaneous taping of multiple wires or cables, increasing production efficiency.

2. 650rpm: This indicates the maximum rotational speed of the taping heads, which is 650 revolutions per minute. A higher rpm generally means faster taping speed, enabling higher production output.

It's important to note that while these specifications provide some information about the machine's capacity and speed, they may vary depending on the specific manufacturer and model. Additionally, other features and capabilities of the machine, such as tension control, material compatibility, and control systems, can significantly impact its overall performance and suitability for different applications.

Main technical data
