350mm Horizontal Multi-Layer Tapping Machine Water Bottle Filling And Capping Machine

350mm horizontal multi-layer tapping machine bottle filling and capping machine

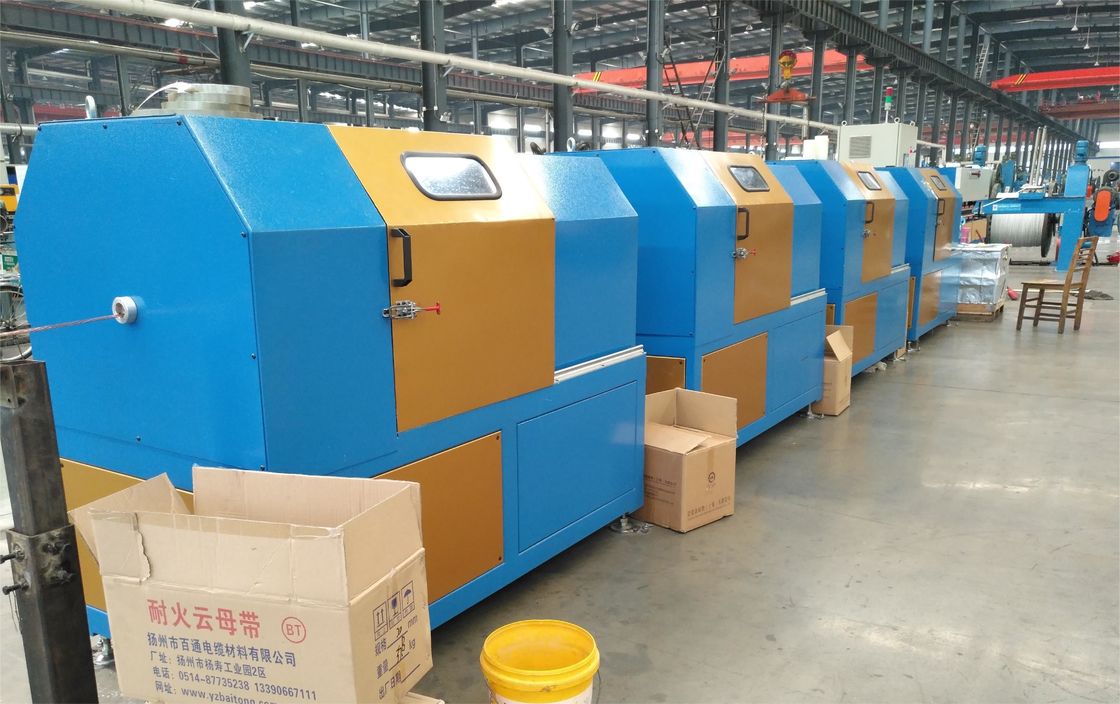

350mm horizontal multi-layer tapping machine

Specification:

Application:

Applied to tape horizontally for copper wire, insulation wire and twisted-cable. The tapping material is mica tape, aluminum foil, fireproof tape, PET foil, etc.

Feature:

• The tape could be used continuously. The machine could store 10 times the quantity of the tape as the old type.
• Universally applicable: used for twisted wire and parallel wire double/single layer continuously centering wrapping.
• High output: high rotate speed,work rate is 2.5 times than traditional type.
• Steady tension control: Automatic tension trace instrument,taping tension keep constant from start to end. Needn't any artificial adjustment.
• Wrapping distance accurate: Setting pitch on touch screen, controlled by PLC, wrapping point is steady while it's normal work or accelerate and decelerate.
• Good traversing: Take-up traversing adopted axis-row type structure,spacing can be set arbitrary.
• High quality: Used for making HDMI,DP,ATA,STAT and such high frequency wire, pass rate 100%.

Product Description

A 350mm horizontal multi-layer tapping machine is a type of machinery used for the tapping or drilling of multiple layers of a workpiece in a horizontal orientation. Here's a general description of a 350mm horizontal multi-layer tapping machine:

1. Capacity: The "350mm" in the machine's name typically refers to the maximum diameter or size of the workpiece that can be accommodated. It indicates that the machine is capable of handling workpieces with a diameter of up to 350mm.

2. Horizontal Orientation: The machine is designed to perform tapping or drilling operations on workpieces that are positioned horizontally. This orientation allows for easy access and manipulation of the workpiece during the tapping process.

3. Multi-Layer Tapping: The machine is specifically designed for tapping or drilling multiple layers of a workpiece simultaneously. It can accommodate workpieces with multiple layers or stacked materials, such as laminates or composite structures.

4. Tapping Process: The machine utilizes a tapping mechanism, which typically consists of a rotating spindle and a tapping tool. The tapping tool is brought into contact with the workpiece, and as the spindle rotates, it creates threads or holes in the workpiece's multiple layers.

5. Automatic Operation: The machine may offer automatic operation capabilities, reducing the need for manual intervention. It can be programmed to perform tapping operations with specific parameters, such as feed rate, depth, and thread size. This automation improves efficiency and consistency in the tapping process.

6. Control System: The machine is equipped with a control system that allows operators to set and adjust various parameters, such as tapping speed, depth, and feed rate. The control system enables customization and optimization of the tapping process.

7. Safety Features: The machine is designed with safety features to ensure operator safety and prevent accidents. These safety features can include emergency stop buttons, safety guards, and sensors that detect abnormalities or malfunctions. The specific safety features can vary depending on the manufacturer and model.

8. Power Requirements: The machine typically requires a power supply at a specific voltage and frequency. The exact power requirements may vary depending on the machine's specifications and the region in which it is used.

It's important to note that the specific features and specifications of a 350mm horizontal multi-layer tapping machine can vary depending on the manufacturer and model. For detailed information, it is recommended to consult the manufacturer's documentation or contact a supplier specializing in tapping machinery.

.
