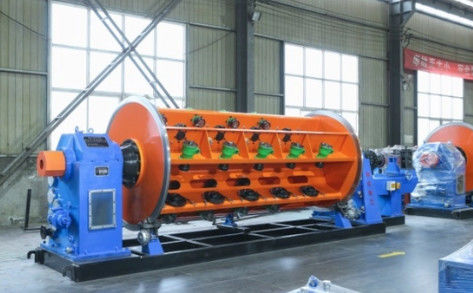

Steel Rigid Stranding Machine For ACSR Moose Conductor

Steel Rigid Stranding Machine For ACSR Moose Conductor

Technical data

Application:

The Rigid Stranding Machine is used for twisting and compacting round or sector conductors, as well as pre-spiraling split conductors.

Features:

• It can quickly and automatically replace the wire reel, with a replacement time of only about ten minutes, greatly reducing auxiliary time and manual investment, and improving production efficiency.
• It can achieve unmanned operation and information management from the wire drawing machine to the frame twisting machine, and practice intelligent manufacturing for your company.
• It can significantly reduce the occupation of workspace by wire reels, save space, ensure the neat and orderly arrangement of wire reels, and improve the working environment.

Product Description:

A steel rigid stranding machine for ACSR (Aluminum Conductor Steel Reinforced) Moose conductor is a specialized piece of equipment used in the wire and cable industry to produce stranded cables specifically using ACSR Moose conductors. Here's a description of this type of machine:

1. Rigid stranding: The machine utilizes a rigid stranding method to twist multiple wires together. In the case of ACSR Moose conductor, it involves twisting together multiple aluminum strands and steel wires to form the final ACSR Moose cable. The steel wires provide strength and support to the aluminum strands.

2. ACSR Moose conductor compatibility: The machine is specifically designed to handle ACSR Moose conductors. ACSR conductors are used in overhead power transmission lines, and the Moose conductor is a specific variant that consists of a combination of aluminum strands and steel wires.

3. Steel wire compatibility: The machine accommodates steel wires, which are an essential component of the ACSR Moose conductor. The steel wires provide mechanical strength and support to the aluminum strands, allowing the conductor to withstand the mechanical stresses encountered in overhead transmission applications.

4. Stranding process: The aluminum strands and steel wires are fed into the machine, which guides them through the stranding elements such as rotating discs or bobbins. These elements twist the aluminum strands and steel wires together, forming the desired stranded structure of the ACSR Moose conductor.

5. Controls and operation: The machine incorporates controls that allow operators to set various parameters, such as stranding speed, tension, and direction. These controls ensure precise and consistent stranding of the aluminum strands and steel wires to produce high-quality ACSR Moose conductors.
