630 Copper Bunching Machine 2500RPM High Speed Double Twist Buncher
  • 630 Copper Bunching Machine 2500RPM High Speed Double Twist Buncher

630 Copper Bunching Machine 2500RPM High Speed Double Twist Buncher

Place of Origin China
Brand Name Hopda
Certification ISO,CE
Product Details
Name:
Tinned Double Twist Stranding Machine
Copper Diameter:
0.08-1.04mm
Motor Power:
7.5kw
Rotation Speed:
2500RPM
Size:
630
Cable Size:
0.5,0.75,1.5,2.5,4,6
Length Of Machine:
8 Meters
High Light:
Tinned Double Twist Stranding Machine, 630 Double Twist Stranding Machine, Double Twist Stranding Machine 2500RPM
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiable
Packaging Details
wooden packing
Delivery Time
20-30
Payment Terms
T/T, L/C
Supply Ability
100 set per month
Product Description



630 Copper Bunching Machine 2500RPM High Speed Double Twist Buncher



Technical Specification

Model YL-1250
Dia. Of Stranded product(mm) Max.15
Stranding Section Area (mm2) 3.5-50
Dia. Of inlet conductor (mm) 0.8-2.6
Dia. Of inlet core wire (mm) 1.0-3.5
Line Speed (m/min) Max.250
Strand Pitch (mm) 35-280
Rotation Speed (rpm) Max.800



Application:

Applied to bunch-twisting copper conductor, Aluminum alloy conductor, etc and twist-cabling core wire. It possesses a carbon fiber bow that is both light and durable, with an extraordinary rotation speed that can reach as high as 4 times the output of a rigid strander.



Feature:

  • The machine is controlled by PLC with human-machine interaction interface. Digital control technique and PLC program make entire control system dependable. It is flexible to set strand pitch by means of the touch-screen.
  • Adopt the bow with carbon fiber material which possesses high strength and is light.
  • The bow, traction and take-up system are adopted independent motor.
  • Very high efficiency. The production efficiency of the double-twist buncher is about 4 times as high as the rigid strander’s.





Product Description:



The "630 Copper Bunching Machine" is a specialized piece of equipment used in the wire and cable manufacturing industry. It is designed to bunch or gather multiple copper wires together to create a cable. The machine is specifically suited for working with copper wires.



The machine operates at a high speed of 2500 revolutions per minute (RPM). The high-speed capability allows for efficient wire bunching and increased production rates.



The "Double Twist" mechanism in this machine means that it can twist the copper wires in two directions simultaneously. This double twist action ensures uniformity and stability in the resulting cable, enhancing its overall strength and flexibility.



When using the 630 Copper Bunching Machine, copper wires are fed into the machine. The machine's rotating components gather the wires in a controlled manner, ensuring proper alignment and tension. The wires are then twisted together in a double twist pattern, forming a tightly bundled cable with improved mechanical and electrical properties.



The resulting cable can be used for various applications, including power transmission, industrial wiring, and electrical installations. The high-speed operation of the machine allows for efficient production and increased productivity.



It's important to note that the mentioned machine specifications, such as the wire size capacity, speed, and twisting mechanism, are provided as an example. Different machines may have varying specifications and capabilities, depending on the specific manufacturer and model.

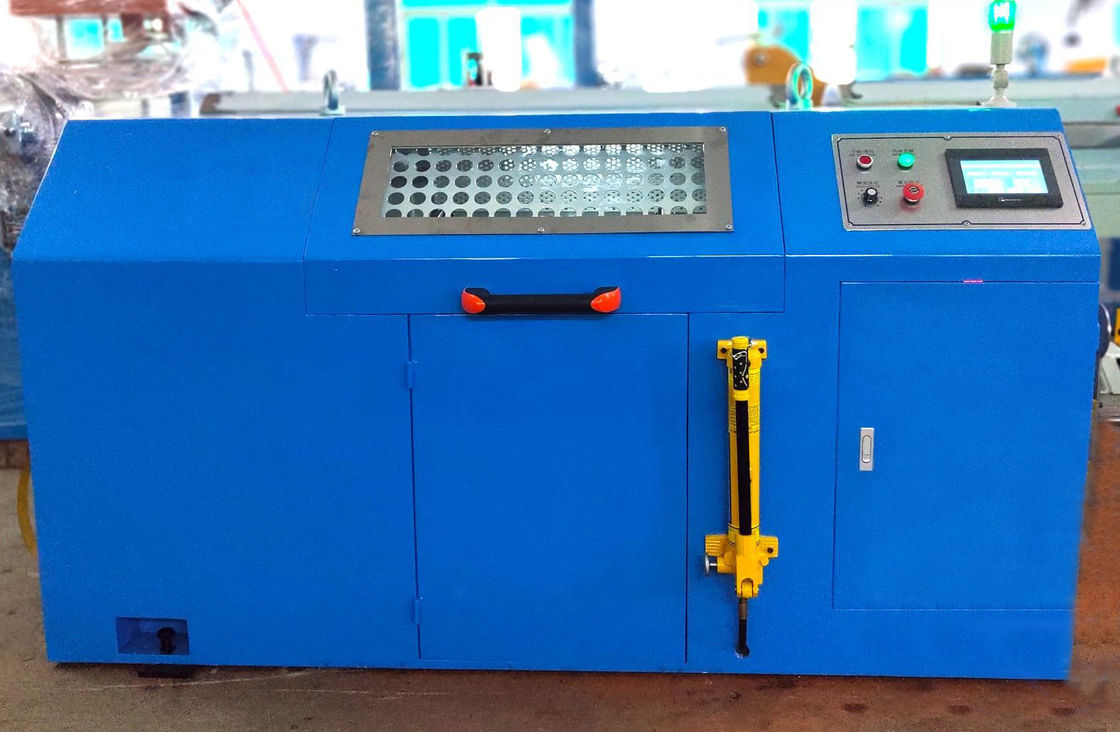

630 Copper Bunching Machine 2500RPM High Speed Double Twist Buncher 0630 Copper Bunching Machine 2500RPM High Speed Double Twist Buncher 1630 Copper Bunching Machine 2500RPM High Speed Double Twist Buncher 2
