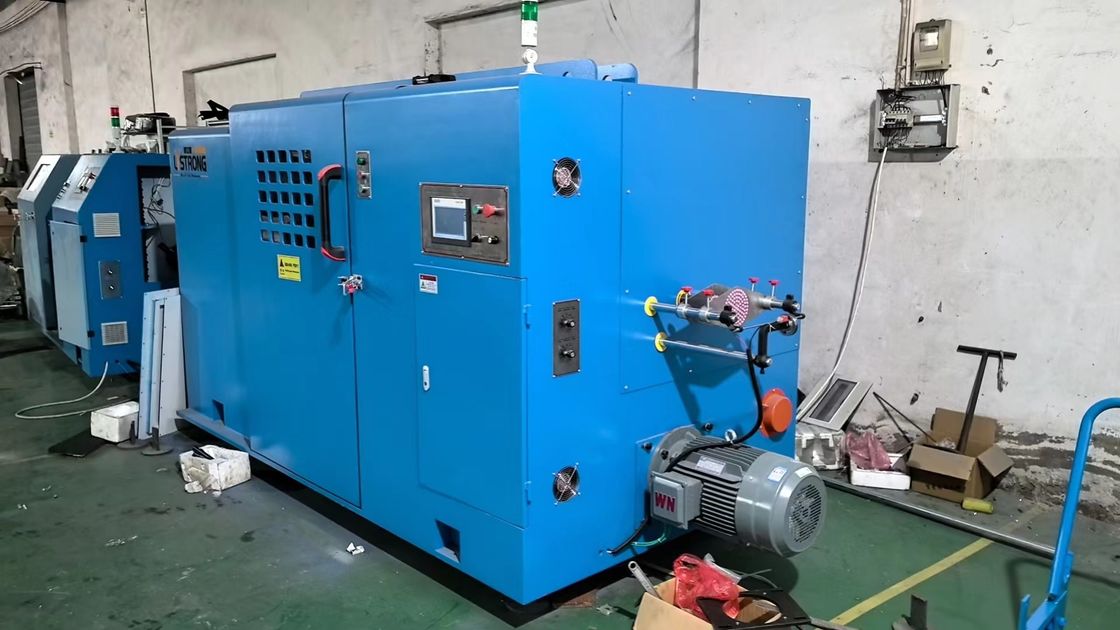

800 Wire Buncher Machine For Physical Foam Coaxial Cable 6mm
  • 800 Wire Buncher Machine For Physical Foam Coaxial Cable 6mm
  • 800 Wire Buncher Machine For Physical Foam Coaxial Cable 6mm
  • 800 Wire Buncher Machine For Physical Foam Coaxial Cable 6mm
800 Wire Buncher Machine For Physical Foam Coaxial Cable 6mm

800 Wire Buncher Machine For Physical Foam Coaxial Cable 6mm

Place of Origin China
Brand Name Hopda
Certification ISO,CE
Model Number 800
Product Details
Product Name:
Copper Bunching Machine
Inlet Copper Wire Diameter:
Φ0.38~1.0(mm)
Stranded Cross Section:
0.8mm2~16.0mm2
Bunching Pitch:
23.74~142.78(mm)
Motor Power:
15kw + 15kw
Rotation Speed:
1200RPM(2400T/Min）
Size:
Length：3000mm；Width：1550mm；Height：1650mm
Central Height:
800mm
Control:
PLC
Braking:
Electro Magnetic Braking 20kg
Highlight:

Coaxial Cable Buncher Machine

,

Physical Foam Buncher Machine

,

6mm Buncher Machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiable
Packaging Details
wooden packing
Delivery Time
20-30
Payment Terms
T/T, L/C
Supply Ability
100 set per month
Product Description



1200RPM 800 Copper Bunching Machine



Technical Specification









Purpose Stranding of conductors such as bare copper wires, silver-plated wires, tin-plated wires, enameled wires, alloy aluminum wires with more than seven strands and cabling of power cord core wires. Through gear transmission, the stranding pitch is changed by gears.
Machine speed 1200RPM (2400T/Min).
Wire feeding diameter Φ0.38 - 1.0 (mm).
Stranded cross-sectional area 0.8mm2 - 16.0mm2.
Stranding pitch 23.74 - 142.78 (mm) (attached stranding pitch table).
Stranding direction Left/right freely selectable.
Take-up reel Φ800mm.
Main motor 15kw motor (Huadong) + 15kw frequency converter controller (Inovance).
Wire arranging device Φ30mm smooth rod bearing type wire arranging. The wire arranging amplitude and pitch are adjustable (Shanxi Tianxiang).
Spindle center height 800mm.
Spindle lubrication method Grease lubrication.
Bearing NSK.
Stranding bow Japanese SK5.
Electrical Touch screen (MCGS) PLC (Siemens).
Brake system 20kg electromagnetic brake (Weizheng). Automatically adjusts and brakes automatically when there is an external wire break.
Lifting system Automatic.
Take-up tension Adopts magnetic powder clutch (Weizheng 5KW) for automatic tracking tension.
Protection Automatically brakes when there is an internal or external wire break. Automatically stops when the counting meter is in place.
Safety protection For each openable door, if the lifting is not in place, it cannot start or will automatically brake.
Indication Corresponding indicator lights indicate the machine status and faults.
Noise index Approximately 80 decibels.
Machine net weight Approximately 4500kgs.
Machine size Length 3000mm; Width 1550mm; Height 1650mm.
Coating RAL5015 German blue.




Description and application:

Applied to bunch-twisting copper conductor, copper clad aluminum wire, varnished wire, tinned wire, etc, our double twist bunching machine boasts industry-leading specifications, with a maximum speed of 1200 rounds per minute and the capability to strand wires ranging from 0.38mm to 1mm in diameter. The stranded crosssection is between 0.8mm2 - 16.0mm2.   Its advanced auto-brake feature ensures minimal waste of resources in the event of wire breakage, whether internal or external. Additionally, the machine's auto-stop capability contributes to a smoother stranding process, enhancing efficiency and productivity.



Feature:

  • Control tension automatically; Adopt International famous Brand bearing; the machine would automatically brake
  • The body frame is annealed to eliminate internal stress and is one-step boring by means of precise boring mill.
  • In the event of a damaged wire, an automatic braking mechanism is activated to bring the machine to a halt, preventing further damage to the wire and ensuring the safety of the operator.
  • Automatic length-counting and auto-stop after specified length is reached.





800 Wire Buncher Machine For Physical Foam Coaxial Cable 6mm 0800 Wire Buncher Machine For Physical Foam Coaxial Cable 6mm 1
